Winchester is a registered trademark of Olin Corporation.

Important instructions for: Winchester SX3 Shotgun.

If you have any questions or comments regarding your new firearm, please feel free to write or call us.

Winchester Repeating Arms
Customer Service Department (United States)
275 Winchester Avenue
Morgan, Utah 84050-9333
Phone: (800)-945-5237

Please use the space below to record information about your new firearm.

Model  __________________________________________________

Serial Number ____________________________________________

Purchased From __________________________________________

Date of Purchase __________________________________________

Specifications within this owner’s manual are correct at the time of printing and subject to change without notice.


STATE WARNING

According to state law, California requires that firearm manufacturers, distributors and retailers include conspicuous, specific warnings with firearms sold in that state.

Warning
Warning

Firearms must be handled responsibly and securely stored to prevent access by children and other unauthorized users.

California has strict laws pertaining to firearms, and you may be fined or imprisoned if you fail to comply with them. Visit the Web site of the California Attorney General at https://oag.ca.gov/firearms for information on firearm laws applicable to you and how you can comply.

Prevent child access by always keeping guns locked away and unloaded when not in use. If you keep a loaded firearm where a child obtains and improperly uses it, you may be fined or sent to prison.

Advertencia Symbol
Advertencia Symbol

Las armas de fuego deben de ser manipuladas responsablemente y almacenadas en sitios seguros para prevenir el acceso a ellas por parte de niños y personas sin autorización.

California cuenta con leyes estrictas sobre las armas de fuego, y puede ser multado y encarcelado si no las obedece. Visite la página web de California Attorney General, https://oag.ca.gov/firearms para más información sobre cómo cumplir con las leyes de armas de fuego.

Prevenga el acceso de los niños a las armas de fuego manteniéndolas siempre en un lugar seguro, bajo llave y descargadas cuando no estén en uso. Si usted deja un arma cargada al alcance de un niño, y éste la utiliza indebidamente,usted podría ser multado e incluso enviado a la cárcel.

Warning Symbol
Warning Symbol

FAILURE TO FOLLOW ANY OF THE FOLLOWING WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.


WARNING: YOU ARE RESPONSIBLE FOR FIREARMS SAFETY

WARNING: YOU ARE RESPONSIBLE FOR FIREARMS SAFETY

Warning Symbol
Warning Symbol

As a firearm owner, you accept a set of demanding responsibilities. How seriously you take these responsibilities can be the difference between life and death.

There is no excuse for careless or abusive handling of any firearm. At all times handle this firearm and all other firearms with intense respect for their power and potential danger.

Please read and understand all of the cautions, warnings, notices, proper handling procedures and instructions outlined in this owner’s manual before using your new firearm.

1 - ALWAYS KEEP THE MUZZLE OF YOUR FIREARM POINTED IN A SAFE DIRECTION EVEN THOUGH YOU ARE CERTAIN IT IS UNLOADED. Never point any firearm at anything you do not intend to shoot. Be extremely alert and aware of all persons and property within the range of your ammunition.

2 - NEVER RELY TOTALLY ON YOUR FIREARM'S MECHANICAL “SAFETY” DEVICE. LIKE ANY MECHANICAL DEVICE, A "SAFETY" CAN SOMETIMES FAIL; IT CAN BE JARRED OR INADVERTENTLY MANIPULATED INTO AN UNSAFE CONDITION.

The word “safety” describes a firearm’s trigger block mechanism, sear block mechanism, hammer block mechanism, or firing pin block mechanism. Mechanical “safeties” are designed to place your firearm in a safer status, and no guarantee can be made that the firearm will not fire even if the “safety” is in the on safe position. Mechanical “safeties” merely aid safe gun handling and are no excuse for pointing your firearm’s muzzle in an unsafe direction. See “Operation of the Safety” section below for instructions on the operation of this firearm’s “safety.”

Remember, safe gun handling does not stop with your firearm’s mechanical “safety” devices, it starts there. Always treat this firearm with the respect due a loaded, ready-to-fire firearm.

Some firearms do not have a mechanical “safety.” Many target firearms, lever-action firearms, and pistols do not have manual “safety” mechanisms. Therefore it is critical to read and understand the owner’s manual for every firearm which explains the safe operation of the firearm.

While it is a good idea to test your firearm’s mechanical “safety” periodically for proper function, never test the “safety” while your firearm is loaded or pointed in an unsafe direction.

3 - WHENEVER YOU HANDLE ANY FIREARM, OR HAND IT TO SOMEONE, ALWAYS OPEN THE ACTION IMMEDIATELY AND VISUALLY CHECK THE FIREARM'S CHAMBER TO MAKE CERTAIN THAT THE FIREARM IS COMPLETELY UNLOADED. Make certain the firearm does not inadvertently contain any ammunition. Remember, merely removing the magazine does  not mean the chamber is unloaded. Always keep the chamber empty and the “safety” in the on safe position unless shooting  is imminent.

4 - ALWAYS WEAR EAR AND EYE PROTECTION WHEN SHOOTING. Unprotected, repeated exposure to gunfire can cause hearing damage. Wear hearing protection (shooting earplugs or muffs) to guard against such damage.

Wear shooting glasses to protect your eyes from flying particles. Allow proper distance (eye relief) between a scope and your eye when firing a scoped pistol, rifle, or shotgun. Do not use unorthodox shooting methods that could cause the rearward travel of the slide or bolt of a firearm to contact your eyes, face, or hands. Always keep a safe distance between the muzzle of your firearm and any persons nearby, as muzzle blast, debris, and ejecting shells could inflict serious injury.

Always wear eye protection when disassembling and cleaning any firearm to prevent the possibility of springs, spring-tensioned parts, solvents, or other agents from contacting your eyes.

5 - KEEP ALL FIREARMS UNLOADED DURING TRANSPORT, EVEN WHEN STORED IN A HOLSTER, GUN CASE, SCABBARD, OR OTHER CONTAINER.

6 - DROPPING OR JARRING A LOADED FIREARM CAN CAUSE ACCIDENTAL DISCHARGE. This can occur even with the “safety” in the on safe position.  Be extremely careful while hunting or during any shooting activity to avoid dropping any firearm.

7 - HUNTING FROM ELEVATED SURFACES SUCH AS TREESTANDS IS DANGEROUS. Doing so may increase the risk of mishandling a firearm. The following rules should always be observed by you and those you hunt with: Always make certain that the stand being used is safe and stable. Always make certain that your firearm is unloaded when it is being taken up and down from the stand. Always make certain that your firearm is not dropped from the stand, or dropped while it is being taken up or down from the stand. Remember, a loaded firearm may discharge when dropped, even with the “safety” in the on safe position.

8 - STORE YOUR FIREARM AND AMMUNITION SEPARATELY, WELL BEYOND THE REACH OF CHILDREN. Take prudent safeguards to ensure your firearm does not become available to untrained, inexperienced or unwelcome hands. Store all firearms in secure, locked cases or a gun safe. Keep your firearm unloaded when not in use.

9 - BEWARE BARREL OBSTRUCTIONS. Mud, snow and an infinite variety of other objects may inadvertently lodge in a barrel bore. It only takes a small obstruction to cause dangerously increased pressures that can damage your firearm and cause serious injury to yourself and others.

BEFORE CHECKING FOR A BARREL OBSTRUCTION, BE CERTAIN YOUR FIREARM IS COMPLETELY UNLOADED, THERE IS NOT A  LIVE CARTRIDGE IN THE CHAMBER AND THE “SAFETY” IS IN THE ON SAFE POSITION.

After ensuring that the firearm is completely unloaded, open the breech or action and look through the barrel to be sure it is clear of obstructions. If an obstruction is seen, no matter how small it may be, clean the bore with a cleaning rod and patch as described in the Cleaning and Maintenance section of this owner’s manual.

10 - BE ALERT TO THE SIGNS OF AMMUNITION MALFUNCTION. IF YOU DETECT AN OFF SOUND OR LIGHT RECOIL WHEN A CARTRIDGE IS FIRED, DO NOT LOAD ANOTHER CARTRIDGE INTO THE CHAMBER.

If your firearm fails to fire, keep the muzzle pointed in a safe direction for a minimum of 30 seconds. Rotate the ejection area of the firearm away from you, carefully open the action and remove the shell from the chamber. If the primer is indented, the defective shell should be disposed of in a way that cannot cause harm. If the primer is not indented, your firearm should be examined by a qualified gunsmith and the cause of the malfunction corrected before further use. Glance down the barrel to make sure that no obstructions remain in the barrel. Completely clear the barrel before loading and firing again. Failure to follow these instructions can cause extensive damage to your firearm and possible serious injury to yourself and others.

11 - NEVER INSERT A SHELL OF THE INCORRECT GAUGE INTO ANY FIREARM. The gauge of your firearm is marked on the barrel. Store all shells of different gauges in completely separate and well-marked containers. Never store shells of mixed gauges in a common container or in your pockets. See the Ammunition Section for more information on the correct ammunition for your firearm.

12 - EXAMINE EVERY SHELL YOU PUT IN YOUR FIREARM.

We assume no responsibility for the use of unsafe or improper firearm and ammunition combinations or damage or injury caused by damaged ammunition. It is your responsibility to read and heed all warnings in this owner’s manual and on ammunition boxes. See the Ammunition Section for more information on the correct ammunition for your firearm.

13 - USE ONLY SAAMI APPROVED AMMUNITION.

The barrel and action of this firearm have been made with safety margins over the pressures established by the Sporting Arms and Ammunition Manufacturers’ Institute (SAAMI) for Service Cartridges. However, we assume no responsibility for incidents which occur through the use of cartridges of nonstandard dimension or those developing pressures in excess of SAAMI established standards.

14 - DISCHARGING FIREARMS IN POORLY VENTILATED AREAS, CLEANING FIREARMS OR HANDLING AMMUNITION MAY RESULT IN EXPOSURE TO LEAD AND OTHER SUBSTANCES KNOWN TO CAUSE BIRTH DEFECTS, REPRODUCTIVE HARM AND OTHER SERIOUS PHYSICAL INJURY. HAVE ADEQUATE VENTILATION AT ALL TIMES. WASH HANDS THOROUGHLY AFTER EXPOSURE.

15 - DO NOT SNAP THE FIRING PIN ON AN EMPTY CHAMBER, THE CHAMBER MAY NOT BE EMPTY!

Treat every firearm with the respect due a loaded firearm,  even though you are certain the firearm is unloaded.

16 - KEEP YOUR FINGERS AWAY FROM THE TRIGGER WHILE LOADING AND UNLOADING UNTIL SHOOTING IS IMMINENT.

17 - BE SURE OF YOUR TARGET AND BACKSTOP, PARTICULARLY DURING LOW LIGHT PERIODS. Know the range of your ammunition. Never shoot at water or hard objects.

18 - ALWAYS UNLOAD YOUR FIREARM'S CHAMBER BEFORE CROSSING A FENCE, CLIMBING A TREE, JUMPING A DITCH OR NEGOTIATING OTHER OBSTACLES. Never place your firearm on or against a fence, tree, car, or other similar object.

19 - BE DEFENSIVE AND ON GUARD AGAINST UNSAFE GUN HANDLING AROUND YOU AND OTHERS. Don’t be timid when it comes to firearm safety. If you observe other shooters violating any of these safety precautions, politely suggest safer handling practices.

20 - BE CERTAIN YOUR FIREARM IS UNLOADED BEFORE CLEANING. Special and extreme care should be taken to be sure your firearm is unloaded before disassembly, cleaning, and reassembly.

Keep ammunition away from the cleaning location. Never test the mechanical function of any firearm with live ammunition.

21 - TEACH AND SUPERVISE FIREARMS SAFETY TO ALL MEMBERS OF YOUR FAMILY, ESPECIALLY TO CHILDREN AND NON-SHOOTERS. Closely supervise newcomers to the shooting sports. Encourage enrollment in hunting and shooting safety courses.

22 - NEVER DRINK ALCOHOLIC BEVERAGES OR TAKE ANY TYPE OF DRUGS BEFORE OR DURING SHOOTING. Your vision, motor skills, and judgment could be dangerously impaired, making your gun handling unsafe to you and to others.

23 - READ AND HEED ALL WARNINGS IN THIS OWNER'S MANUAL, ON AMMUNITION BOXES, AND WITH ALL ACCESSORIES THAT YOU INSTALL ON YOUR FIREARM. It is your responsibility to secure the most up-to-date information on the safe handling procedures of your Winchester firearm. We assume no liability for incidents which occur when unsafe or improper firearm accessories or ammunition combinations are used.

24 - PRACTICE PERIODIC MAINTENANCE, AVOID UNAUTHORIZED SERVICING. Your firearm is a mechanical device which will not last forever, and as such, is subject to wear and requires periodic inspection, adjustment, and service. Winchester firearms should be serviced by a Winchester Repeating Arms Authorized Repair Center or by our Service Facility in Arnold, Missouri. We assume no responsibility for injuries suffered or caused by unauthorized servicing, alterations, or modifications of Winchester firearms.

25 - DO NOT, UNDER ANY CIRCUMSTANCES, ALTER THE TRIGGER, "SAFETY" OR OTHER PARTS OF THE FIRING MECHANISM OF THIS OR ANY OTHER FIREARM EXCEPT AS OTHERWISE DESCRIBED IN THIS MANUAL.

WE RESERVE THE RIGHT TO REFUSE SERVICE ON FIREARMS THAT HAVE BEEN ALTERED, ADDED TO OR SUBSTANTIALLY CHANGED. Removal of metal from the barrel, or modifications of the firing mechanism and/or operating parts, may lead to a refusal of service on such firearms. You will be charged for parts and labor to return the firearm to original specifications prior to servicing your firearm.

With respect to AFTERMARKET PARTS OR COMPONENTS (including, for example, aftermarket trigger systems, barrels, muzzle brakes, suppressors, magazines, etc.), USE AT YOUR OWN RISK. Winchester firearms are designed and engineered to meet stringent safety standards. Winchester Repeating Arms is not responsible for personal injuries or property damage caused by alterations to a firearm. This includes the incorporation of aftermarket parts or components that may or may not satisfy Sporting Arms and Ammunition Manufacturers’ Institute (SAAMI) standards (for example, an aftermarket trigger system may not satisfy SAAMI minimum trigger pull standards, etc.) or may create other dangerous conditions. These conditions may or may not be apparent to the user (for example, installing an aftermarket barrel may have the effect of altering critical firearm dimensions, including headspace, and may create an unsafe firing condition, etc.). Aftermarket parts or components that do not satisfy SAAMI standards, or that could create other dangerous conditions, should not be used.

FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH, AS WELL AS CAUSE DAMAGE TO YOUR FIREARM.

BE CAREFUL!

BE CAREFUL!

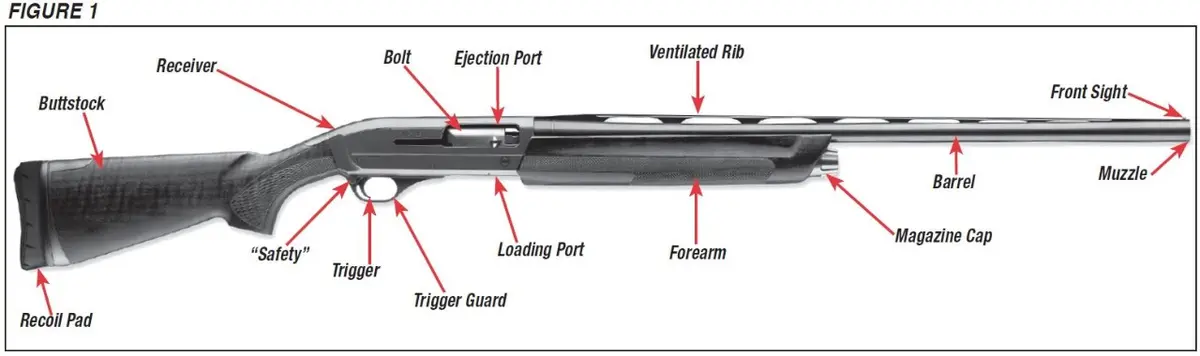

SX3 Shotgun Diagram Figure 1
SX3 Shotgun Diagram Figure 1

GENERAL DESCRIPTION

The Super X®3 is designed to produce unmatched reliability and superb handling, qualities that are demanded by serious hunters and shooters. The simple, self-adjusting Active Valve gas piston system makes the Super X3 the fastest cycling autoloader available. The alloy receiver balances weight between the hands with just enough barrel weight for a smooth swing. The acclaimed Invector-Plus™ interchangeable choke tube system provides superior shot patterns. As you learn about your new shotgun and begin shooting it, we’re sure you’ll agree its design sets new standards for reliability and handling.

Your shotgun is one of several different versions offered. The basic operating procedures are the same for all models. Where there are differences, they are pointed out in this owner’s manual for your convenience.

GENERAL OPERATION

This shotgun is an autoloading design that allows you to fire follow-up shots by merely pulling the trigger. When you fire a shell, the Active Valve gas system moves a loaded shell from the magazine to the chamber where it is fired with a pull of the trigger. This can be repeated until the magazine is empty. A single shell can also be inserted into the chamber manually or moved from the loaded magazine by cycling the action with the operating handle. With the magazine three-shot adaptor (plug) removed from the magazine and using 2¾" loads, the shotgun is capable of shooting five shots in rapid succession, one shot with each pull of the trigger. The short stroke and snug, gas-sealing fit of the gas piston limits the amount of combustion gases blown past the piston sleeve and into the receiver, keeping the inside of the receiver cleaner.

This is an exceptionally advanced design that offers reliable function from the gas system and easy disassembly for maintenance and cleaning. However, in order to keep your new shotgun in top condition and operating at its peak performance, you must read, understand and follow all of the instructions in this owner’s manual.

Prior to using live ammunition, familiarize yourself thoroughly with the operating instructions in this owner’s manual. Get accustomed to the feel of your new firearm and know the forces required to operate the action. Learn how to squeeze the trigger and, above all, know the location and operation of the “safety.” Procedures for disassembly and operation of various components are outlined later in this owner’s manual. Please read and study them thoroughly.

NOMENCLATURE

In conventional firearm terminology the position and movement of firearm parts are described as they occur with the firearm horizontal and in the normal firing position: i.e., the muzzle is forward or in front; the buttstock is rearward or to the rear; the trigger is downward or underneath; the rib is upward or on top. For general parts nomenclature, refer to Figure 1. For specific parts names related to disassembly, refer to Figure 2.

The shotgun is also shown disassembled to the extent necessary in order to follow instructions contained in this owner’s manual (Figure 2). Figure 4 covers the general features and benefits of the shotgun’s design. Throughout this owner’s manual the term “action” refers to the mechanism of this shotgun which loads and secures the shell in the chamber.

SERIAL NUMBER

The serial number is located on the left side of the receiver, just above the trigger guard. Record the serial number at the front of this book for future reference.

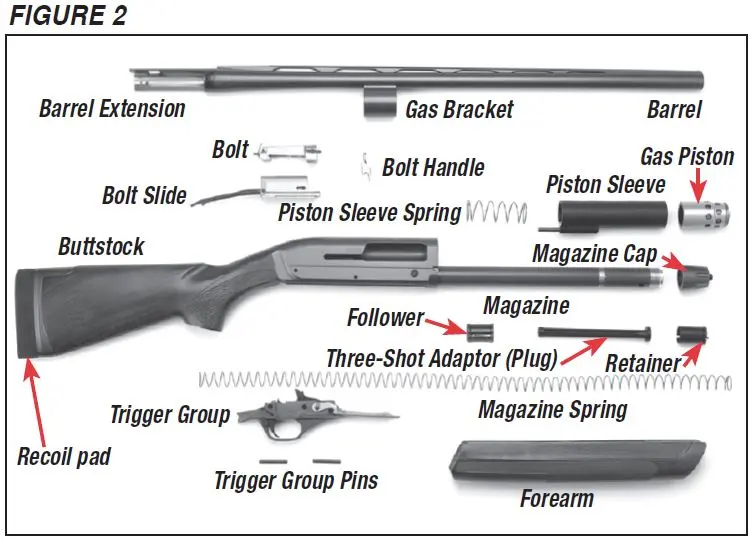

SX3 Shotgun Diagram Figure 2
SX3 Shotgun Diagram Figure 2

Notice Symbol
Notice Symbol

NOTICE: PLEASE TAKE NOTE OF THE FOLLOWING INFORMATION BEFORE CLEANING YOUR FIREARM.

Initial Cleaning and Oiling

Initial Cleaning and Oiling

CLEANING PARTS WITH SPECIAL FINISHES

Be especially careful when cleaning firearms with camouflage, Dura-Touch® Armor Coating and other special finishes. Always prevent these surfaces from coming in contact with cleaning solvents, barrel scrubbers and other strong chemicals. It is preferable to clean these surfaces with a light gun oil containing no solvents or with a damp cloth and mild dish soap (be sure to keep water out of the action). When cleaning your firearm’s bore and action, protect the external finishes from any contact with chemicals used. Also, avoid any contact between external finishes and other strong chemicals like those found in DEET-containing insect repellents, sunscreens, etc. Damage to camouflage, Dura-Touch and other finishes caused by chemicals is irreversible and not repairable.

Warning Symbol
Warning Symbol

WARNING: WEAR EYE PROTECTION WHEN ASSEMBLING AND DISASSEMBLING YOUR SHOTGUN TO PREVENT SPRINGS, SPRING-LOADED PARTS, SOLVENTS OR OTHER AGENTS FROM CONTACTING YOUR EYES, RESULTING IN INJURY.

Some metal parts of your new firearm have been coated at the factory with a rust preventative compound. Before using your firearm, clean the anti-rust compound from the inside of the barrel, receiver, bolt mechanism and the action/chamber areas. A high quality, lightweight gun oil should be used to remove this compound and to give your new firearm its first lubrication. Clean the barrel using a cleaning rod and patch as explained under the “Cleaning and Maintenance Suggestions” section in this owner’s manual. Before beginning assembly of your firearm you should first wipe the mechanism clean and apply a few drops of quality oil on the indicated surfaces (Figure 3). Avoid applying too much oil. Only a light film is necessary. Excessive oil should be wiped off, especially in cold weather.

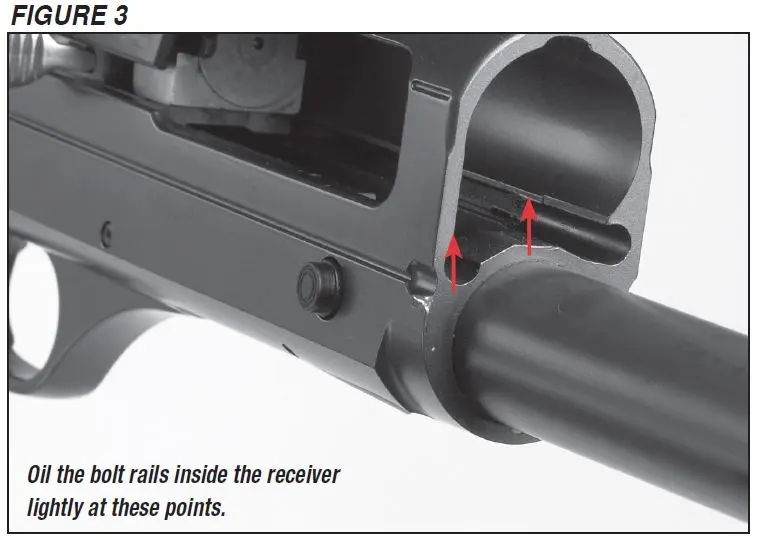

SX3 Shotgun Bolt Rail Oil Points Figure 3
SX3 Shotgun Bolt Rail Oil Points Figure 3

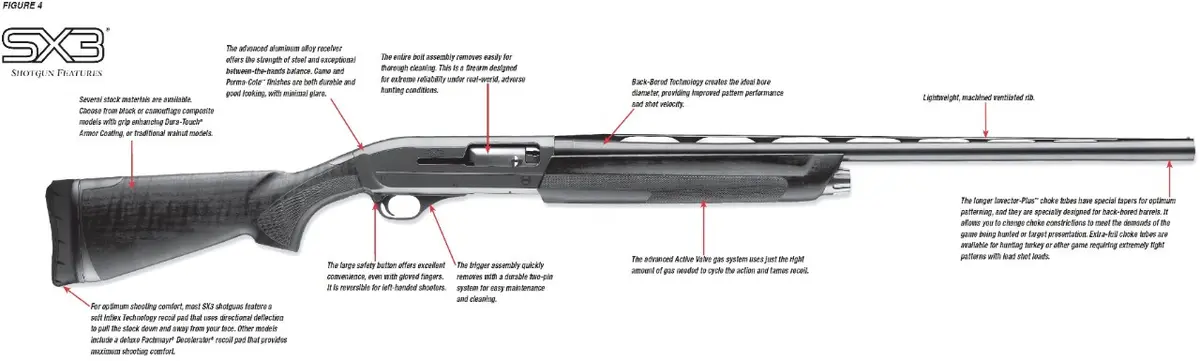

SX3 Shotgun Diagram Figure 4
SX3 Shotgun Diagram Figure 4

Warning Symbol
Warning Symbol

WARNING: ALWAYS KEEP THE “SAFETY” IN THE ON SAFE POSITION UNLESS SHOOTING IS IMMINENT. ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION. FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.

Operation of the "Safety"

Operation of the "Safety"

The cross bolt “safety” is designed to prevent the trigger from being pulled when in the on safe position. The “safety” is located at the rear of the trigger guard. In the off safe position, a red warning band is visible on the “safety” button on the left side of the trigger guard. It is essential that you become very familiar with the feel, look and operation of the “safety” on this shotgun before attempting to load and shoot.

The “safety” on this shotgun is reversible for right- or left-handed operation. It comes from the factory in the right-handed position. Verify the installation of your firearm’s “safety.” Instructions in this owner’s manual are for the “safety” installed in the right-handed position.

To place the firearm on safe, press the “safety” button to the right (Figure 5). To move the “safety” to the off safe or fire position, press the “safety” button to the left. This exposes the red warning band on the “safety” button (Figure 6).

With the “safety” in the on safe position the trigger and hammer are blocked and the shotgun cannot be fired. In the off safe position, if your firearm is loaded with a shell in the chamber, the chambered shell can be fired by simply pulling the trigger.

Warning Symbol
Warning Symbol

WARNING: DO NOT DEPEND ON THE RED COLOR ALONE TO INDICATE YOUR FIREARM’S “SAFETY” STATUS. TIME, EXPOSURE TO THE ELEMENTS AND THE ABRASIVE ACTION OF CLEANING AGENTS CAN ERASE IT. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH.

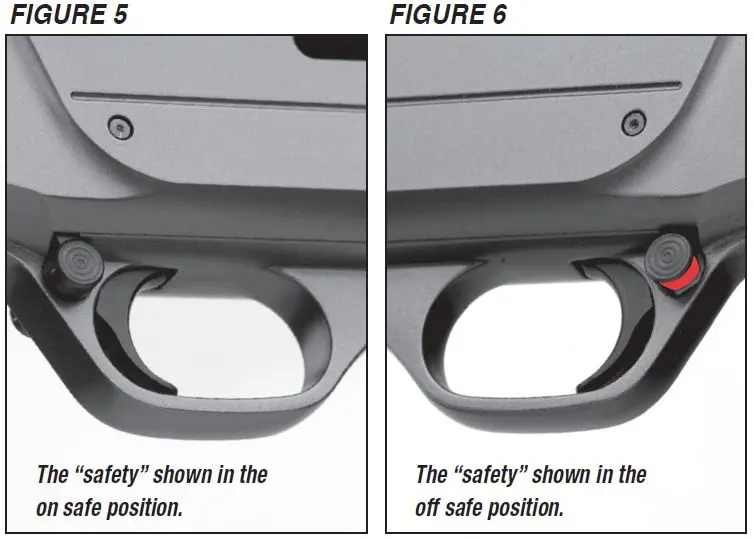

SX3 Shotgun Safety Figure 5 and 6
SX3 Shotgun Safety Figure 5 and 6
Warning Symbol
Warning Symbol

WARNING: DO NOT DEPEND ON THE RED COLOR ALONE TO INDICATE YOUR FIREARM’S “SAFETY” STATUS. TIME, EXPOSURE TO THE ELEMENTS, AND THE ABRASIVE ACTION OF CLEANING AGENTS CAN ERASE IT. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH.


Warning Symbol
Warning Symbol

WARNING: ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION. BEFORE STARTING ASSEMBLY PROCEDURES, VISUALLY INSPECT THE CHAMBER TO BE ABSOLUTELY CERTAIN THE FIREARM IS COMPLETELY UNLOADED. PLACE THE “SAFETY” IN THE ON SAFE POSITION. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH.

Assembly

Assembly

The Super X3 shotgun is delivered in the box with the barrel removed and the forearm attached to the magazine tube.

1. Take the receiver in hand. Lock the bolt rearward by pulling the operating handle fully to the rear.

Notice Symbol
Notice Symbol

NOTICE: NEVER ALLOW THE ACTION TO SLAM CLOSED BY PRESSING THE CARRIER RELEASE BUTTON WITHOUT THE BARREL INSTALLED. IF THE BOLT IS RELEASED FORWARD WITH THE BARREL REMOVED, THE OPERATING HANDLE WILL HIT THE RECEIVER AND CAUSE DAMAGE.

2. Remove the forearm from the magazine tube by unscrewing the magazine cap and sliding the forearm forward, off the magazine tube.

Notice Symbol
Notice Symbol

NOTICE: DO NOT SQUEEZE HARD ON THE OPEN REAR END OF A WOOD FOREARM. TOO MUCH PRESSURE COULD CAUSE THE WOOD TO SPLIT.

3. The components of the gas system: The piston sleeve, piston sleeve spring, and gas piston remain in place and do not need to be removed except for cleaning. If these components have been removed, reinstall them as explained below. Otherwise, proceed to step 7.

4. Slide the piston sleeve spring and piston sleeve (push rod end first) onto the magazine tube.

  • The push rod on 12 gauge models goes into the slot on the left side of the receiver (Figure 7).
  • The push rod on 20 gauge models goes into the slot on the right side of the receiver.

Make sure the piston sleeve spring is properly positioned in the piston sleeve.

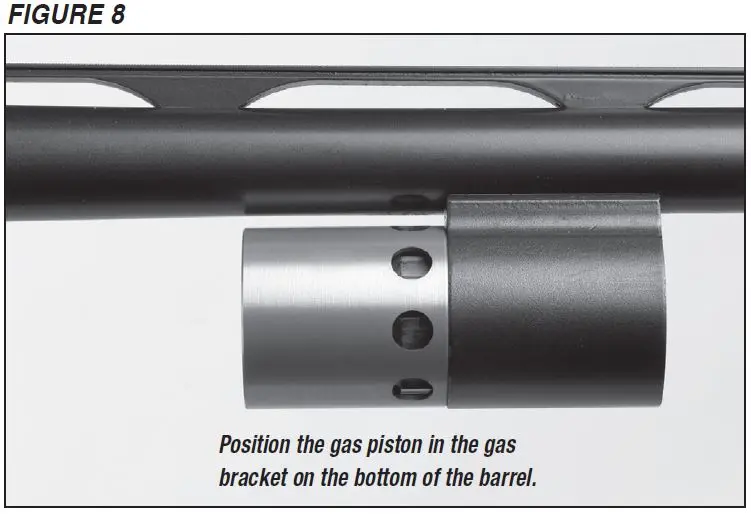

5. Slide the gas piston into the gas bracket (Figure 8).

6. Align the gas bracket and gas piston over the magazine tube (Figure 9). Slide the gas bracket and gas piston over the magazine tube. The barrel extension should slip solidly down into the receiver. Make sure the push rod moves freely in its slot in the receiver.

7. Replace the forearm by sliding it onto the magazine tube and over the gas bracket so it seats securely. Install the magazine cap finger tight. Open and close the action several times and retighten the magazine cap to ensure a proper seal.

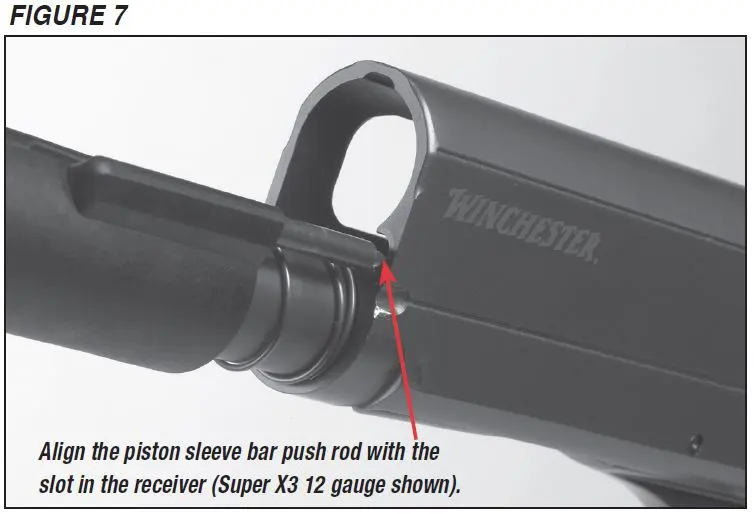

SX3 Shotgun Push Rod Slot Figure 7
SX3 Shotgun Push Rod Slot Figure 7
SX3 Shotgun Gas Bracket Figure 8
SX3 Shotgun Gas Bracket Figure 8

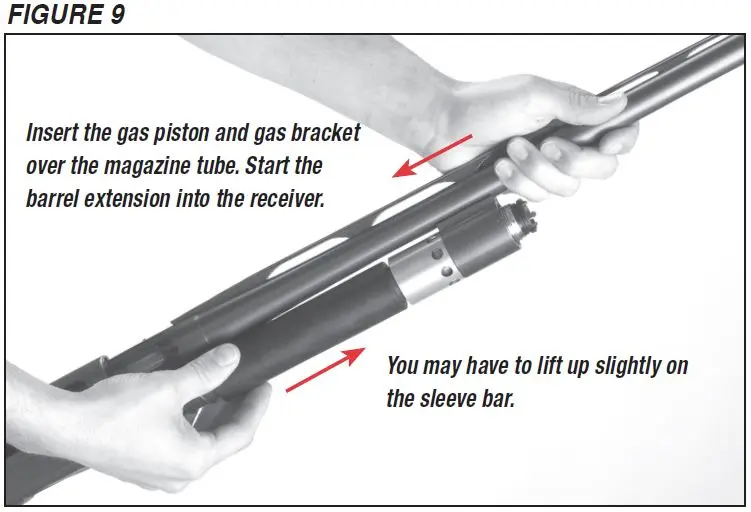

SX3 Shotgun Receiver Assembly Figure 9
SX3 Shotgun Receiver Assembly Figure 9

Warning Symbol
Warning Symbol

WARNING: ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION. BEFORE STARTING DISASSEMBLY PROCEDURES, OPEN THE ACTION AND VISUALLY INSPECT THE CHAMBER TO BE ABSOLUTELY CERTAIN THE FIREARM IS COMPLETELY UNLOADED. PLACE THE “SAFETY” IN THE ON SAFE POSITION. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH.

Disassembly

Disassembly

1. Unscrew the magazine cap and remove it.

2. Remove the forearm by sliding it forward off the magazine tube.

3. For cleaning, remove the barrel, gas piston, piston sleeve, and piston sleeve spring by sliding them forward off the magazine tube. See the “Cleaning and Maintenance Suggestions” below for cleaning procedures.

If you are disassembling for storage, return the piston sleeve spring, piston sleeve, and piston onto the magazine tube. Reinstall the forearm over the magazine tube and screw on the magazine cap. You will then have two compact units: 1) The barrel 2) The action with the stock and forearm.

Notice Symbol
Notice Symbol

NOTICE: AFTER THE BARREL HAS BEEN REMOVED, LEAVE THE BOLT IN THE REARWARD POSITION. DO NOT PRESS THE CARRIER RELEASE BUTTON. IF THE BOLT IS RELEASED FORWARD WITH THE BARREL REMOVED, THE OPERATING HANDLE WILL STRIKE THE RECEIVER, CAUSING DAMAGE.


Warning Symbol
Warning Symbol

WARNING: DISCHARGING FIREARMS IN POORLY VENTILATED AREAS, CLEANING FIREARMS OR HANDLING AMMUNITION MAY RESULT IN EXPOSURE TO LEAD  AND OTHER SUBSTANCES KNOWN TO CAUSE BIRTH DEFECTS, REPRODUCTIVE HARM AND OTHER SERIOUS PHYSICAL INJURY. HAVE ADEQUATE VENTILATION AT ALL TIMES. WASH HANDS THOROUGHLY AFTER EXPOSURE.

USE ONLY SHELLS OF THE CORRECT GAUGE AND LENGTH. THE GAUGE AND LENGTH OF THE CHAMBER IS INSCRIBED ON THE SIDE OF THE BARREL. DO NOT USE AMMUNITION OTHER THAN WHAT IS INSCRIBED ON THE SIDE OF THE BARREL. EXAMINE EVERY SHELL YOU PUT IN YOUR SHOTGUN. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH AND CAUSE DAMAGE TO YOUR SHOTGUN.

USE SHELLS OF THE CORRECT LENGTH. DO NOT USE 3" OR 3½" SHELLS IN A BARREL WITH A 2¾" OR 2½" CHAMBER, OR 3½" SHELLS IN A BARREL WITH A 3" CHAMBER. DOING SO CAN RESULT IN A BUILDUP OF DANGEROUSLY HIGH PRESSURES. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH AND CAUSE DAMAGE TO YOUR SHOTGUN.

DO NOT PUT A 16 GAUGE SHELL OR A 20 GAUGE SHELL IN A 12 GAUGE SHOTGUN. DO NOT PUT A 28 GAUGE SHELL IN A 20 GAUGE SHOTGUN. DO NOT PUT A .410 BORE SHELL IN A 28 GAUGE SHOTGUN. NEVER PUT METALLIC SHELLS OF ANY KIND IN A SHOTGUN. SPECIFICALLY, NEVER PUT CENTERFIRE RIFLE OR PISTOL CARTRIDGES IN A SHOTGUN CHAMBERED FOR .410 BORE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH AND CAUSE DAMAGE TO YOUR SHOTGUN.

Ammunition

Ammunition

The most certain way to bulge or rupture a shotgun barrel is to load a smaller gauge shell into a larger gauge chamber. The smaller gauge shell will not fall completely through the barrel; its rim is caught by the front of a larger gauge chamber or at the larger gauge’s choke. Your shotgun will misfire (with the chamber appearing to be empty). It is then possible to load the correct gauge shell behind the smaller gauge shell. If the shotgun is then fired, the result will be a so-called “12-16, 12-20, 20-28  or 28-.410 burst” which can cause extensive damage to your shotgun and possible serious injury to you and others.

We can assume no responsibility for incidents which occur through the use of shells of nonstandard dimension or those developing pressures in excess of SAAMI (Sporting Arms and Ammunition Manufacturer’s Institute) established standards.

There are three basic versions of this shotgun. This information can be found inscribed on the barrel. The barrel can safely shoot both lead and steel shot. Special rifled choke tubes and rifled barrels are designed for shooting sabot-type slugs. Winchester ammunition is always an excellent choice for your shotgun, delivering unmatched performance and dependability.

  • 12 gauge, 3½" chamber — These models have a 3½" chamber designed to shoot factory 12 gauge loads including 2¾", 3" and 3½" (11/8 oz. to 2¼ oz.) field loads. (They are not designed to shoot the lightest factory 7/8 oz. and 1 oz. loads.)
  • 12 gauge, 3" chamber — These models have a 3" chamber designed to shoot factory 12 gauge loads including 2¾" and 3" (1 oz. to 2 oz.) field loads. (They are not designed to shoot the lightest factory 7/8 oz. and 1 oz. target loads or any 3½" shells.)
  • 20 gauge, 3" chamber — These models have a 3" chamber designed to shoot factory 20 gauge loads including 2¾" and 3" (7/8 oz. to 1½ oz.) field loads. (They are not designed to shoot the lightest factory 7/8 oz. and 1 oz. target loads.)

Magazine Capacity

Magazine Capacity

With the magazine three-shot adaptor (plug) removed, Super X3 3" shotguns will hold four 2¾" or three 3" shells in the magazine. Super X3 3½" shotguns will hold four 2¾" shells, or three 3" or 3½" shells in the magazine. With the magazine three-shot adaptor (plug) installed magazine capacity is limited to two shells in the magazine.

Remember, “total” capacity includes an additional shell in the chamber in addition to a full magazine.

It is extremely important that you know the magazine capacity of your shotgun. Under appropriate circumstances, at a range or other suitable shooting location, load your magazine to full capacity and make note of the number of shells.

IMPORTANT: Because 3" and 3½" shotguns can handle mixed shells of different lengths, total capacity may be affected.


Warning Symbol
Warning Symbol

WARNING: ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION. BEFORE REMOVING OR INSTALLING THE THREE-SHOT ADAPTOR, COMPLETELY UNLOAD THE SHOTGUN. OPEN THE ACTION AND VISUALLY INSPECT THE CHAMBER, FEED MECHANISM AND MAGAZINE  TO BE ABSOLUTELY CERTAIN THE FIREARM IS COMPLETELY UNLOADED. PLACE THE “SAFETY” IN THE ON SAFE POSITION. FAILURE TO FOLLOW  THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH.

WEAR EYE PROTECTION WHEN REMOVING OR INSTALLING THE THREE-SHOT ADAPTOR TO PREVENT SPRINGS, SPRING-LOADED PARTS, SOLVENTS OR  OTHER AGENTS FROM CONTACTING YOUR EYES, RESULTING IN INJURY.

Three-Shot Adaptor (Plug)

Three-Shot Adaptor (Plug)

The Super X3 shotgun is delivered with the magazine three-shot adaptor (plug) installed in the magazine, limiting magazine capacity to two shells in compliance with federal migratory bird regulations. If you do not  wish to be limited to three shots, when it is not required by law, you can remove (or reinstall) the three-shot adaptor as follows:

REMOVING THE THREE-SHOT ADAPTOR (PLUG)

1. Unscrew the magazine cap and remove it, the forearm, barrel and gas piston.

2. The magazine three-shot adaptor is located underneath the magazine spring retainer located in the forward end of the magazine tube. To remove the magazine spring retainer, use a flat-blade screwdriver to depress the magazine spring retainer tab, located in the window on the magazine tube while keeping your hand on the magazine spring retainer (Figure 10). Slowly remove the magazine spring retainer as it is under pressure from the magazine spring (Figure 11). Remove the magazine three-shot adaptor (Figure 12).

3. Compress the magazine spring back into the magazine tube and replace the magazine spring retainer. Make sure the magazine spring retainer tab is locked in place in the slot in the magazine tube.

4. Reinstall the gas piston, barrel, forearm and magazine cap.

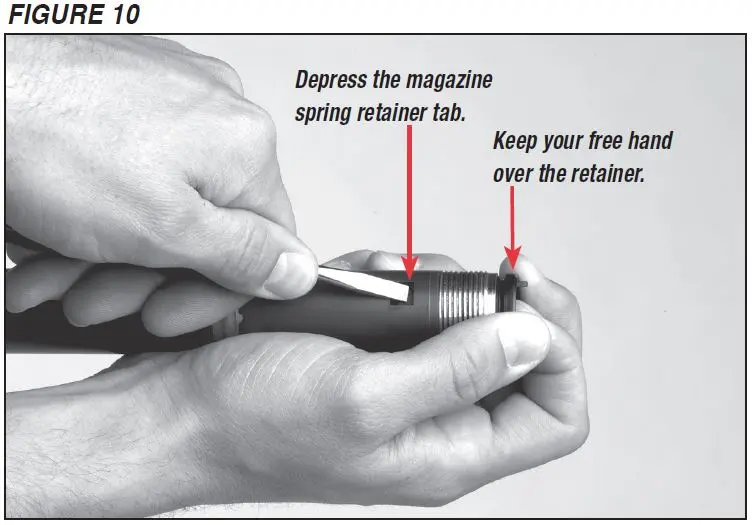

SX3 Shotgun Magazine Retainer and Spring Figure 10
SX3 Shotgun Magazine Retainer and Spring Figure 10

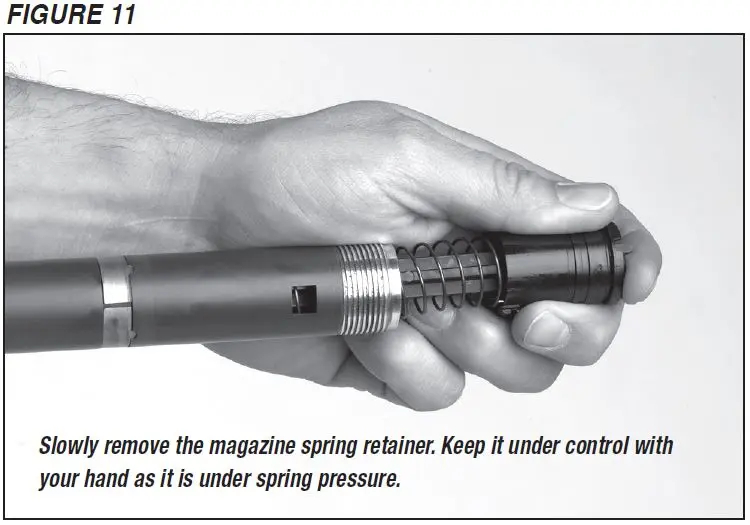

SX3 Shotgun Magazine Spring and Plug Figure 11
SX3 Shotgun Magazine Spring and Plug Figure 11

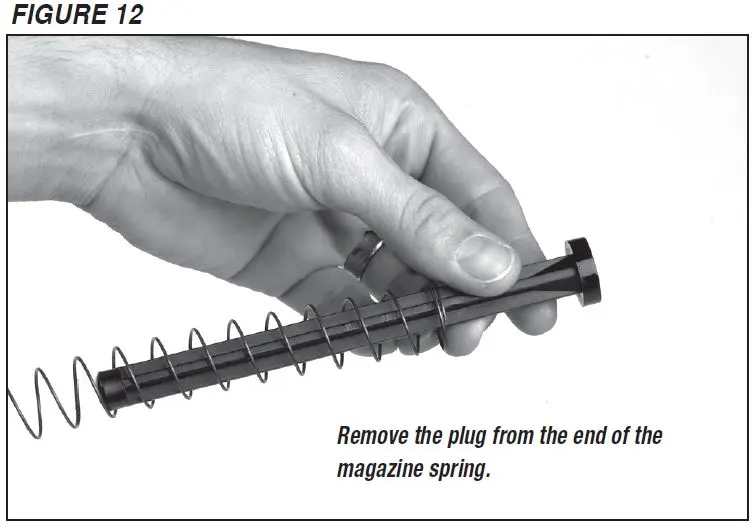

SX3 Shotgun Removing the Plug Figure 12
SX3 Shotgun Removing the Plug Figure 12

INSTALLING THE THREE-SHOT ADAPTOR (PLUG)

If you need to install the magazine three-shot adaptor (plug) to limit your shotgun magazine to three shells, again perform the following operation:

1. Unscrew the magazine cap and remove it, the forearm, barrel and gas piston.

2. Carefully remove the magazine spring retainer as explained previously, maintaining control of the magazine spring.

3. Insert the three-shot adaptor (plug) into the magazine. Use the three-shot adaptor to force the magazine spring into the magazine until the base of the three-shot adaptor is level with the end of the magazine tube.

4. Replace the magazine spring retainer. Make sure the magazine spring retainer tab is locked in place in the slot in the magazine tube.

5. Reinstall the gas piston, barrel, forearm and magazine cap.


Warning Symbol
Warning Symbol

WARNING: WHEN LOADING YOUR SHOTGUN ALWAYS PLACE THE “SAFETY” IN THE ON SAFE POSITION, KEEP THE MUZZLE POINTED IN A SAFE DIRECTION, AND KEEP YOUR FINGERS AWAY FROM THE TRIGGER. FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.

DO NOT CARRY YOUR SHOTGUN WITH A SHELL IN THE CHAMBER TO AVOID ACCIDENTAL DISCHARGE. WHEN FIRING IS NO LONGER IMMINENT, MAKE SURE THE “SAFETY” IS IN THE ON SAFE POSITION AND UNLOAD THE CHAMBER. FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.

Loading

Loading

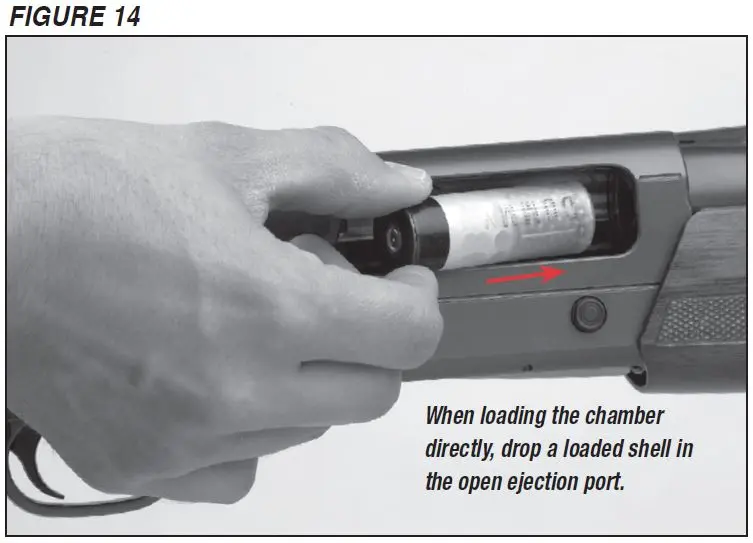

There are two methods used to load a shell into the chamber of the 12 gauge Super X3 shotgun: Loading through the ejection port and loading from the magazine. 20 gauge models may be loaded by these two methods or using the Speed Loading feature.

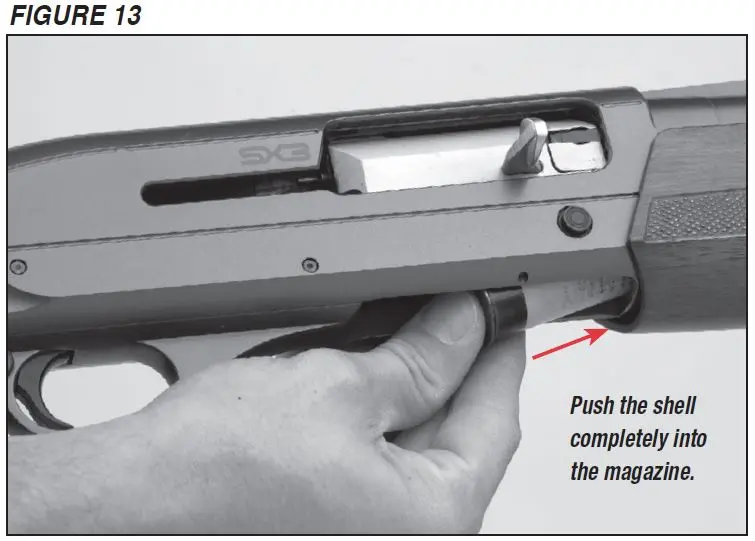

LOADING THE MAGAZINE

1. Pull the operating handle to the rear until the bolt locks in the open position. Visually inspect the chamber, feed mechanism and magazine to make sure they are unloaded and clear of any obstructions.

2. Close the bolt by pressing the carrier release button.

3. Insert a shell of the proper gauge and length through the loading port at the bottom of the receiver up into the magazine, using your thumb to position it fully forward in the magazine tube (Figure 13). Make certain the rim of the shell engages the shell stop and is held fully inside the magazine tube. It will make an audible click when fully inserted.

4. If desired, continue loading the magazine until it is full.

SX3 Shotgun Loading the Magazine Figure 13
SX3 Shotgun Loading the Magazine Figure 13

LOADING THE CHAMBER MANUALLY FROM THE MAGAZINE

1. With the bolt closed, depress the carrier with the front of the shell and, using your thumb, push the shell into the magazine until the shell is held in place by the shell stop.

2. If desired, continue to load the magazine, as explained above, to full capacity.

3. If firing is imminent, a shell can now be moved from the magazine to the chamber by pulling back fully on the bolt handle and releasing it forward. A shell will be fed automatically from the magazine to the chamber as the bolt closes. Another shell can then be inserted into the magazine to load to full capacity.

Warning Symbol
Warning Symbol

WARNING: THE SHOTGUN IS NOW READY TO FIRE BY SIMPLY MOVING THE “SAFETY” TO THE OFF SAFE POSITION AND PULLING THE TRIGGER.

LOADING THE CHAMBER THROUGH THE EJECTION PORT

1. Pull the operating handle to the rear until the bolt locks in the open position. Visually inspect the chamber, feed mechanism and magazine to make sure they are clear of any obstructions.

2. Insert a shell of the proper gauge and length through the ejection port into the open breech (Figure 14).

3. Press the carrier release button to deliver the shell into the chamber. The chamber is now loaded.

Warning Symbol
Warning Symbol

WARNING: KEEP YOUR FINGERS CLEAR OF THE EJECTION PORT WHENEVER CLOSING THE ACTION WITH THE CARRIER RELEASE BUTTON. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN INJURY.

4. With a shell in the chamber, you may load the magazine to full capacity. To load the magazine, insert a shell of the proper gauge and length through the loading port at the bottom of the receiver up into the magazine, using your thumb to position it fully forward in the magazine tube. Make sure the rim of the shell engages the shell stop and is held fully inside the magazine tube. It will make an audible click when fully inserted.

SX3 Shotgun Loading through the Chamber Figure 14
SX3 Shotgun Loading through the Chamber Figure 14
Warning Symbol
Warning Symbol

WARNING: THE SHOTGUN IS NOW READY TO FIRE BY SIMPLY MOVING THE “SAFETY” TO THE OFF SAFE POSITION AND PULLING THE TRIGGER.

SPEED LOADING (20 GAUGE ONLY)

1. With the bolt open, insert a shell into the magazine. The shell will be automatically cycled from the magazine to the chamber.

Warning Symbol
Warning Symbol

KEEP YOUR FINGERS CLEAR OF THE EJECTION PORT WHEN LOADING THE SHOTGUN USING THE SPEED LOADING PROCEDURE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN INJURY.

2. If desired, load the magazine to full capacity by inserting a shell of the proper gauge and length through the loading port at the bottom of the receiver up into the magazine, using your thumb to position it fully forward in the magazine tube (Figure 13). Make sure the rim of the shell engages the shell stop and is held fully inside the magazine tube. It will make an audible click when fully inserted.

Warning Symbol
Warning Symbol

THE SHOTGUN IS NOW READY TO FIRE BY SIMPLY MOVING THE “SAFETY” TO THE OFF SAFE POSITION AND PULLING THE TRIGGER.


Warning Symbol
Warning Symbol

WARNING: NEVER LOAD A SHELL INTO THE CHAMBER OR PLACE THE “SAFETY” IN THE OFF SAFE POSITION UNLESS SHOOTING IS IMMINENT. ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION. FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.

Firing

Firing

1. Place the “safety” in the on safe position and load a shell into the chamber as explained previously.

2. With a shell in the chamber, you need only move the “safety” to the off safe position to fire the shotgun.

3. When ready to fire, move the “safety” into the off safe position, take aim and squeeze the trigger.

After a shell is fired, the gas-operated system ejects the fired shell and picks up a loaded shell from the magazine and automatically chambers it.

You may continue to fire the shotgun until the magazine is empty by pulling the trigger to fire each shell. After the last shell is fired, the breech of the shotgun remains open, with the bolt locked to the rear. This allows convenient and fast reloading.

If you are done shooting, leave the bolt locked to the rear, with the breech in the open position so that you may visually inspect the chamber, bore, carrier and magazine to be sure they contain no shells.

Warning Symbol
Warning Symbol

WARNING: AFTER FIRING, OR WHEN SHOOTING IS NO LONGER IMMINENT, IMMEDIATELY PLACE THE “SAFETY” IN THE ON SAFE POSITION.

FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.

EVEN WITH THE BOLT LOCKED OPEN AFTER SHOOTING, DO NOT ASSUME THE SHOTGUN IS UNLOADED. ALWAYS INSPECT THE CHAMBER, FEED MECHANISM, AND MAGAZINE TO BE CERTAIN THE SHOTGUN IS COMPLETELY UNLOADED. FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.


Warning Symbol
Warning Symbol

WARNING: WHEN UNLOADING YOUR SHOTGUN ALWAYS PLACE THE “SAFETY” IN THE ON SAFE POSITION. KEEP THE MUZZLE POINTED IN A SAFE DIRECTION AND YOUR FINGERS AWAY FROM THE TRIGGER. FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.

ALWAYS INSPECT THE CHAMBER, BARREL, FEED MECHANISM AND MAGAZINE CAREFULLY AFTER UNLOADING TO BE SURE ALL LIVE SHELLS ARE CLEARED FROM THE FIREARM.

Unloading

Unloading

1. Grasp the bolt handle and cycle the action until all shells are transferred from the magazine to the chamber and then ejected. Take care to avoid damaging shells. Avoid letting them fall to the ground.

2. When the last shell in the magazine has been cycled through the chamber and out the ejection port, the bolt will lock rearward. The bolt will also lock rearward when cycled with an empty magazine.

3. Visually inspect the chamber, feed mechanism, and magazine to assure there are no shells remaining.


Warning Symbol
Warning Symbol

WARNING: NEVER ATTEMPT TO REMOVE OR INSTALL A CHOKE TUBE IN A LOADED FIREARM. WHENEVER REMOVING OR INSTALLING A CHOKE TUBE IN A SHOTGUN, ALWAYS PLACE THE “SAFETY” IN THE ON SAFE POSITION. VISUALLY INSPECT THE CHAMBER, FEED MECHANISM, AND MAGAZINE TO BE ABSOLUTELY CERTAIN THE FIREARM IS COMPLETELY UNLOADED. ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION. FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.

Caution Symbol
Caution Symbol

INVECTOR-PLUS, STANDARD INVECTOR AND WINCHOKE CHOKE TUBES ARE NOT INTERCHANGEABLE. DO NOT USE INVECTOR-PLUS, STANDARD INVECTOR OR WINCHOKE CHOKE TUBES IN ANY SHOTGUN BARREL NOT SUPPLIED BY WINCHESTER REPEATING ARMS. DO NOT USE ANY OTHER CHOKING DEVICE IN ANY SHOTGUN BARREL SUPPLIED BY WINCHESTER REPEATING ARMS.

USE ONLY THE APPROPRIATE GAUGE AND TYPE OF CHOKE TUBE, MARKED INVECTOR-PLUS, STANDARD INVECTOR OR WINCHOKE, IN THIS SHOTGUN. DO NOT FIRE THIS SHOTGUN WITHOUT THE CORRECT CHOKE TUBE INSTALLED. DAMAGE MAY RESULT TO THE THREADS INSIDE THE BARREL.

FAILURE TO FOLLOW THIS INFORMATION COULD RESULT IN DAMAGE TO YOUR SHOTGUN OR POSSIBLE INJURY.

Notice Symbol
Notice Symbol

NOTICE: USE ONLY THE CHOKE TUBE WRENCH SUPPLIED WITH YOUR SHOTGUN TO INSTALL AND REMOVE CHOKE TUBES. USING ANY OTHER WRENCH MAY DAMAGE THE THREADS IN THE BARREL.

Interchangeable Choke Tube System

Interchangeable Choke Tube System

All Super X3 shotgun barrels are threaded to accept the Invector-Plus™ choke tube system. Standard Invector and Invector-Plus tubes are not interchangeable. Confirm the choke system of your shotgun by looking on the right side of the barrel where the specifications are inscribed, where the choke markings are normally located.

The constriction of each choke tube is indicated twice on the choke tube: On the side of the tube, and indicated with a “notch” code on the top rim of the tube. The included universal choke tube wrench is used to remove and install choke tubes.

Invector-Plus and Standard Invector choke tubes are compatible with factory ammunition that has been  loaded in compliance with SAAMI specifications, including magnum lead and steel shot loads, sabots and shotgun slug loads.

Replacement and additional tubes and wrenches are available from your Winchester Repeating Arms dealer, or by contacting the Winchester Repeating  Arms Customer Service Department.

CHOKE TUBE SELECTION

To help you choose the correct choke tube for each hunting and shooting situation, all Invector-Plus choke tubes are inscribed on the side with the patterns they produce with both lead and steel shot. Each Invector-Plus tube also has notches in the top rim of the tube (Figure 15). These notches are a code to allow you to determine the choke designation while the tube is installed. Rim notches refer specifically to lead shot. Use the charts on this page to cross-reference from lead shot to steel shot, and determine the appropriate tubes for your ammunition and hunting/shooting situation.

Several choke tubes are supplied with your shotgun.  The choke tubes listed are also available as accessories. Remember, WinChoke, Standard Invector and Invector-Plus tubes are not interchangeable. Invector-Plus tubes are for Winchester shotguns with back-bored barrels only. Before removing or installing tubes, or reading the rim notch code, make sure your shotgun is completely unloaded.

Choke Tube Notch Identification Chart
Choke Tube Notch Identification Chart

Not for use with steel shot. Using an over-tight choke constriction with steel shot will result in an ineffective “blown” pattern.

** Extra Full Turkey, extended tube with ports. Do not use with steel shot.

When more than one choke designation is listed for a given steel shot pattern, use the more open choke listed for high velocity, larger shot size steel loads.

CHOKE TUBE REMOVAL

1. Place the “safety” in the on safe position. Always make sure the shotgun is completely unloaded. Always keep the muzzle pointed in a safe direction.

2. Use the choke tube wrench to loosen the tube, turning it counterclockwise. Finger-twist the tube the rest of the way out of the barrel.

CHOKE TUBE INSTALLATION

1. Place the “safety” in the on safe position. Always make sure the shotgun is completely unloaded. Always keep the muzzle pointed in a safe direction.

2. Before installing a tube, check the internal choke tube threads in the muzzle, as well as the threads on the choke tube to be sure they are clean. Lightly oil the threads with a high-quality, lightweight gun oil.

3. Using your fingers, screw the appropriate tube into the muzzle of the barrel, threaded end first, notched end outward. When it becomes finger-tight, use the choke tube wrench to firmly seat the tube.

Notice Symbol
Notice Symbol

NOTICE: THE CHOKE TUBE SHOULD BE PERIODICALLY CHECKED TO ASSURE THAT IT IS TIGHT AND FIRMLY SEATED. BEFORE CHECKING, FOLLOW ALL CHOKE TUBE REMOVAL AND INSTALLATION SAFETY GUIDELINES PREVIOUSLY OUTLINED.


Warning Symbol
Warning Symbol

WARNING: BEFORE MOUNTING A SCOPE, SIGHT OR OTHER ACCESSORIES TO YOUR SHOTGUN, PLACE THE “SAFETY” IN THE ON SAFE POSITION. OPEN THE ACTION AND MAKE CERTAIN YOUR SHOTGUN IS COMPLETELY UNLOADED. KEEP THE MUZZLE POINTED IN A SAFE DIRECTION. FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.

Scope Mounting Instructions

Scope Mounting Instructions

Some Super X3 shotguns are designed to accept a scope or other optical sight; usually these are turkey and deer models. The top of the receiver on some of these models is drilled and tapped for scope bases. Other models are equipped with a cantilever scope base. If your shotgun has a cantilever mount, follow the mounting instructions supplied with your scope rings and/or scope. If your shotgun’s receiver is drilled and tapped for scope mounts, four holes (in line, in pairs on top of the receiver) will be visible. They are fitted with filler screws. If yours is drilled and tapped you must adhere to the following:

Notice Symbol
Notice Symbol

NOTICE: YOUR WINCHESTER SHOTGUN IS DRILLED AND TAPPED FOR THE MOUNTING OF BASES AND RINGS TO ACCOMMODATE AN APPROPRIATE SCOPE OR SIGHT. ALWAYS USE THE CORRECT BASES FOR THIS SHOTGUN WITH THE APPROPRIATE LENGTH SCREWS WHICH ARE AT LEAST 11/32" IN LENGTH.

1. Open the action and place your shotgun on a table or other safe/secure location. Protect the finish with rags or other padding.

2. You should have two Super X3-compatible bases and four screws of at least 11/32" in length. Make sure your bases are compatible with your shotgun.

3. Clean all oil, grease, and dirt from the receiver top and from the scope base parts.

4. Position your shotgun in the upright position with the top of the receiver upward.

5. Remove all four filler screws from the top of the receiver using a very small, thin-bladed gunsmithing-type screwdriver.

6. Pre-position the bases on the receiver top to determine the best orientation of the bases. Most bases have transverse grooves cut into them that are offset from the middle. These are the grooves that the crossbolts in your scope rings will pass through. The grooves are offset to allow you to position the bases to fit the design/length of your scope and the placement of the scope front to back for proper eye relief. Place both grooves to the rear, both to the front, or one in each direction, depending on your scope and desired position.

7. Once you know which configuration you will use, insert the screws through the bases and screw them into the receiver top using the correct wrench or screwdriver (usually a 3/32" hex wrench). You must use screws that are at least 11/32" in length to ensure proper thread engagement.

Many gunsmiths find it helpful to use a drop of serviceable thread locking compound to assure the screws stay tight. Make sure the compound does not get into the action. Be careful to assure that the threads of each screw engage properly in the threads in the receiver to prevent stripping the threads in the alloy receiver.

8. Tighten the screws snugly, but do not overtighten.

9. Mount your scope rings and scope as outlined in the instructions supplied with your scope rings and / or scope. Always make sure you have the proper eye relief. Always make sure that the saddle crossbolts and the cap bolts on the rings are fully tightened before using your shotgun.


Warning Symbol
Warning Symbol

WARNING: BEFORE INSTALLING ACCESSORY BARRELS ON  YOUR SHOTGUN, READ THE FOLLOWING GUIDELINES  TO ENSURE THE BARREL/SHOTGUN COMBINATION IS SAFE. PLACE THE “SAFETY” IN THE ON SAFE POSITION. OPEN THE ACTION AND MAKE CERTAIN  YOUR SHOTGUN IS COMPLETELY UNLOADED. KEEP THE MUZZLE POINTED IN A SAFE DIRECTION. FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.

Extra Barrels

Extra Barrels

The versatility of your new shotgun can be extended with an extra barrel. Most shotgun barrels are interchangeable within a given gauge and chamber length. No special fitting is required. However, some important restrictions must be observed:

  • Never use a barrel with a 3½" chamber on a shotgun designed for barrels with a 3" chamber.
  • Never use a barrel with a 3" chamber on a shotgun designed for barrels with a 3½" chamber.
  • Never use any other barrel from any other manufacturer on your shotgun. Some other brands may seem similar, but the barrels are not interchangeable.
  • Never use a barrel from other Winchester shotguns, including those for the Super X®1 or Super X®2.

Warning Symbol
Warning Symbol

WARNING: BEFORE PERFORMING STOCK ADJUSTMENT PROCEDURES, PLACE THE “SAFETY” IN THE ON SAFE POSITION. OPEN THE ACTION AND MAKE CERTAIN YOUR SHOTGUN IS COMPLETELY UNLOADED. KEEP THE MUZZLE POINTED IN A SAFE DIRECTION. FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.

Length of Pull Adjustment

Length of Pull Adjustment

The stock can be adjusted for length of pull by adding or removing spacers to the rear of the stock. This applies to both composite and wood stock (except Classic Field) models. Each spacer extends length of pull ¼" and a maximum of three spacers can be added to extend length of pull ¾". With longer screws (not provided), more than three spacers can be added to further extend length of pull.

Composite stock models come from the factory with two spacers in the box. Wood stock shotguns include a ¼" thick spacer installed (except Classic Field). Additional spacers can be ordered through your local Winchester Repeating Arms dealer or by calling our Customer Service Department at (800) 322-4626.

Length of pull can be shortened by having a gunsmith trim the stock and refit the recoil pad. Composite stock guns can be trimmed up to ½".

Shotguns with a composite stock also feature a shim adjustment system that allows fine tuning of drop at comb, heel and cast. Six shims are included.

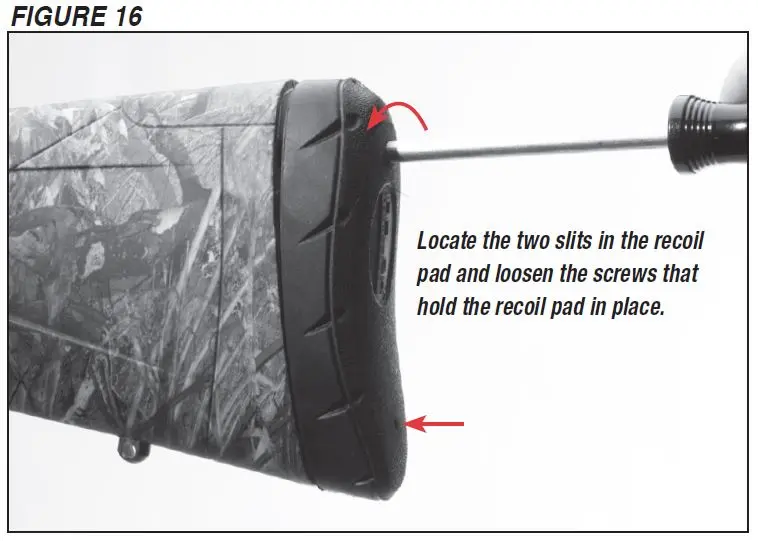

SX3 Shotgun Recoil Pad Screws Figure 16
SX3 Shotgun Recoil Pad Screws Figure 16

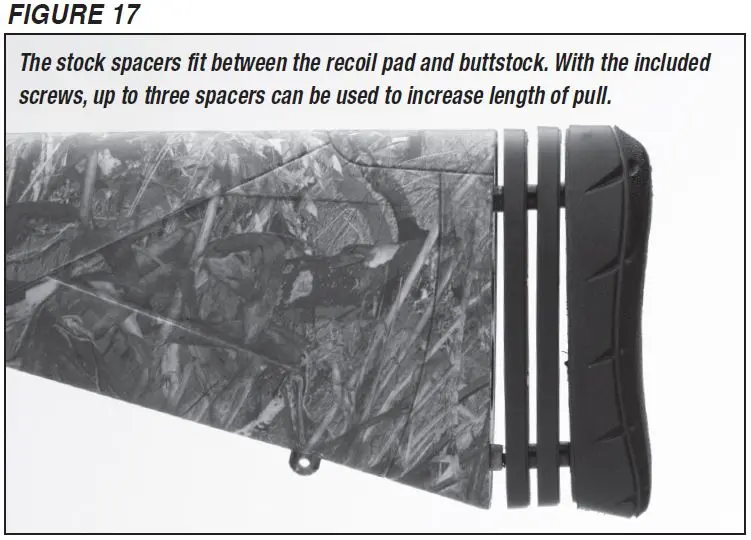

SX3 Shotgun Stock Spacers Figure 17
SX3 Shotgun Stock Spacers Figure 17

TO ADJUST LENGTH OF PULL

1. Make sure your shotgun is completely unloaded and the “safety” is in the on safe position.

2. Use a #2 cross tip or Phillips screwdriver to remove the recoil pad at the end of the buttstock (Figure 16). Place a small amount of petroleum jelly on the screw access slits on the top and bottom of the rear of the buttstock to prevent damaging the recoil pad. Insert the screwdriver into each of the two access holes. Make certain the tip of the screwdriver engages the head of the screw. Turn the screw counterclockwise until the screw is completely loose from the stock. When both screws are free, remove the recoil pad.

3. Add or subtract spacers to fit your firearm to your specifications (Figure 17). After making  an adjustment hold the shotgun to your shoulder to determine if the new length feels comfortable. Remember to always keep the muzzle pointed in a safe direction, the safety in the “on safe” position and the shotgun is completely unloaded.

4. When you are satisfied with the length of pull, start the screws through the pad and spacer(s) into the holes in the stock.

5. Attach the recoil pad to the stock using the screwdriver. Turn the screws clockwise to tighten.  Do not overtighten the screws.

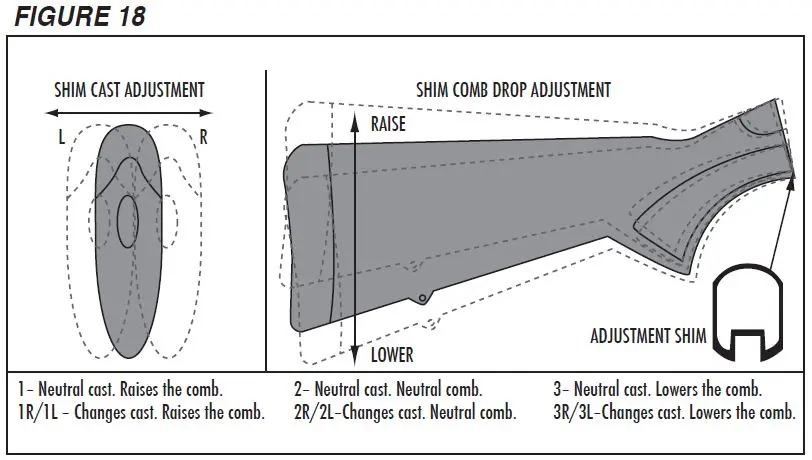

SX3 Shotgun Shim Adjustment Figure 18
SX3 Shotgun Shim Adjustment Figure 18

ADJUSTING CAST AND DROP AT COMB

Six shims have been included with composite-stocked Super X3 shotguns (Figure 18). (12 gauge, wood-stocked models do not include stock shims.) The shims fit between the buttstock and receiver, allowing customized adjustments to the comb and heel. Each shim is labeled / stamped for a specific amount of adjustment. The neutral shim, No. 2, is already installed on your shotgun.

Drop at comb is defined as the place on the comb that your cheek rests when taking aim. If drop at comb is correct, your eye falls in line with the sight bead. Shims marked 1, 2 and 3 do not give any cast on or off. The stock remains straight. They only adjust drop at comb.

These shims with their respective stamps are further clarified here:

  • Shim 1 raises the comb approximately 1/16", and the heel approximately 1/8".
  • Shim 2 is neutral. This shim is already installed on your shotgun.
  • Shim 3 lowers the comb approximately 1/16", and the heel approximately 1/8".

Cast is the offset of the buttstock from the longitudinal center line of the firearm. Some right-handed shooters like the stock to angle away (cast off) from their face, making their line of sight more directly in line with the rib. Angling the stock to the left for left-handed shooters is “cast on.” Shims marked 1R1L, 2R2L and 3R3L, will all adjust drop at comb the same amount as shims 1, 2 and 3, and will also adjust the cast right or left approximately 1/8". You will notice that the two opposing edges of these spacers are different in thickness. These shims with their respective stamps are further clarified here:

  • Shim 1R1L adjusts the comb in the increment given above, (shim 1) and will adjust the cast on or cast off approximately 1/8". For right-handed shooters, install this shim between the receiver and the stock with the R facing the end of the buttstock, so its thicker side is on the left side. This casts the stock slightly to the right, away from the face of a right-handed shooter. If you turn the shim around so the L is facing the end of the buttstock, and it will cast the stock to the left.
  • Shim 2R2L adds the same amount of cast to the stock as shim 1RL and the same amount of drop to the comb as shim No. 2.
  • Shim 3R3L adds the same amount of cast to the stock as 2RL and 3RL, and lowers the comb approximately 1/16" and the heel approximately 1/8".

TO INSTALL A SHIM

1. Make sure your shotgun is completely unloaded and the “safety” is in the on safe position.

2. Use a #2 cross tip or Phillips screwdriver to remove the recoil pad at the end of the buttstock (Figure 16). Place a small amount of petroleum jelly on the screw access slits on the top and bottom of the rear of the buttstock to prevent damaging the recoil pad. Insert the screwdriver into each of the two access holes. Make certain the tip of the screwdriver engages the head of the screw. Turn the screw counterclockwise until the screw is completely loose from the stock. When both screws are free, remove the recoil pad.

3. Using a ½" socket wrench, remove the stock bolt nut and stock bolt washer. (Figure 19).

4. Completely remove the buttstock from the receiver, along with the existing shim, and install the shim you have selected (Figure 20). Make certain you have the proper shim installed and in position before reattaching the buttstock and recoil pad.

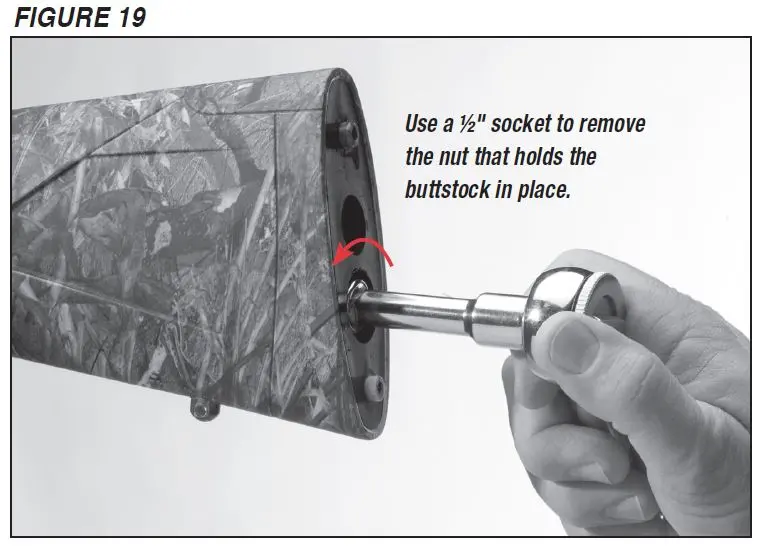

SX3 Shotgun Stock Bolt Nut Figure 19
SX3 Shotgun Stock Bolt Nut Figure 19

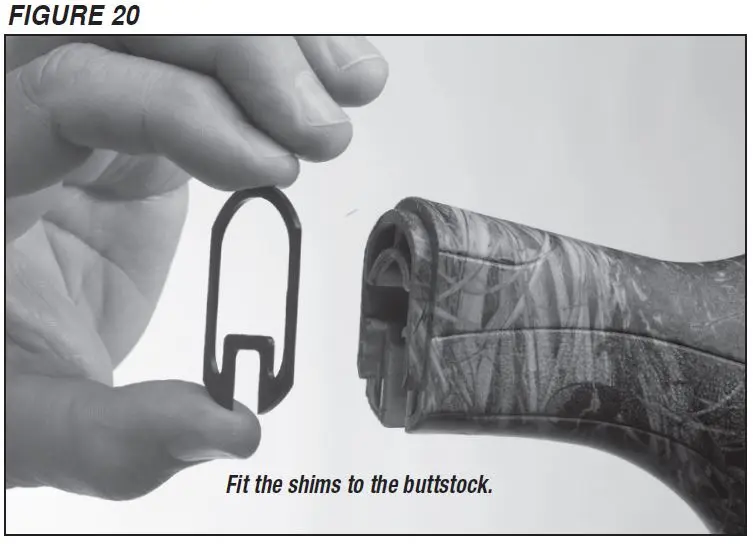

SX3 Shotgun Stock Shims Figure 20
SX3 Shotgun Stock Shims Figure 20
Notice Symbol
Notice Symbol

NOTICE: DO NOT USE MORE THAN ONE SHIM AT A TIME ON THE BUTTSTOCK.

5. When you are satisfied with the fit, reattach the buttstock to the receiver with the washer and the nut.

6. Snug the nut with the socket wrench, do not overtighten.

7. Attach the recoil pad with care, so as not to scratch or mar the finish of the stock. Wipe any excess petroleum jelly off the recoil pad.


Warning Symbol
Warning Symbol

WARNING: BEFORE PERFORMING STOCK ADJUSTMENT PROCEDURES, PLACE THE “SAFETY” IN THE ON SAFE POSITION. OPEN THE ACTION AND MAKE CERTAIN YOUR SHOTGUN IS COMPLETELY UNLOADED. KEEP THE MUZZLE POINTED IN A SAFE DIRECTION. FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.

Comb Adjustment

Comb Adjustment

Some shotguns are fitted with an adjustable stock that allows you to make adjustments to the stock for cast and drop. This feature is usually found on target models where shooters benefit from highly customized settings.

ADJUSTING CAST ON AND CAST OFF

Adjusting cast on and cast off allows you to achieve a perfect fit from the stock to your face. This is a most crucial adjustment, as it determines how correctly and consistently your eye will line up with the sight plane along the barrel rib. A shotgun correctly adjusted for cast on and cast off will have you looking directly down the center of the rib with the front and middle beads  in alignment.

1. Using a 3mm Allen wrench, loosen the two comb retaining screws on the right side of the removable cheekpiece and remove the cheekpiece by lifting upward (Figure 21). This exposes the cast on and cast off adjustment mechanism. (The cheekpiece comes set from the factory with cast in the center position.)

2. Loosen both the comb adjustment stud screws located in the top of the stock adjustment studs using the larger (3mm) Allen wrench that is provided (Figure 22).

3. Slide each stud equally in the desired direction. Each mark indicates 1/16" (Figure 23).

4. Move the studs to the right for cast off.

5. Move the studs to the left for cast on.

6. Right-handed shooters may desire some cast off, with left-handed shooters preferring some cast on. The terminology is the same for right- or left-handed shooters. The net effect is to move the cheekpiece to allow the face to move farther over the stock for better eye-to-rib alignment.

7. When properly set, the front and rear sight beads should line up perfectly each time you shoulder your shotgun.

8. Tighten the stock adjustment screws. Be careful not to overtighten.

9. Replace the cheekpiece onto the studs. If drop at comb has already been set to your desired height, tighten the two comb retaining screws securely.

If drop has not been set, leave the retaining screws loose and proceed to “Adjusting Drop at Comb.”

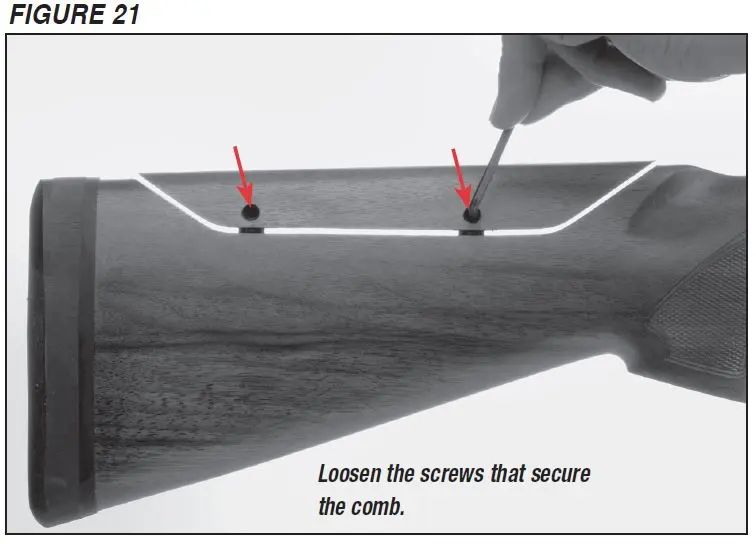

SX3 Shotgun Loosening Comb Screws Figure 21
SX3 Shotgun Loosening Comb Screws Figure 21

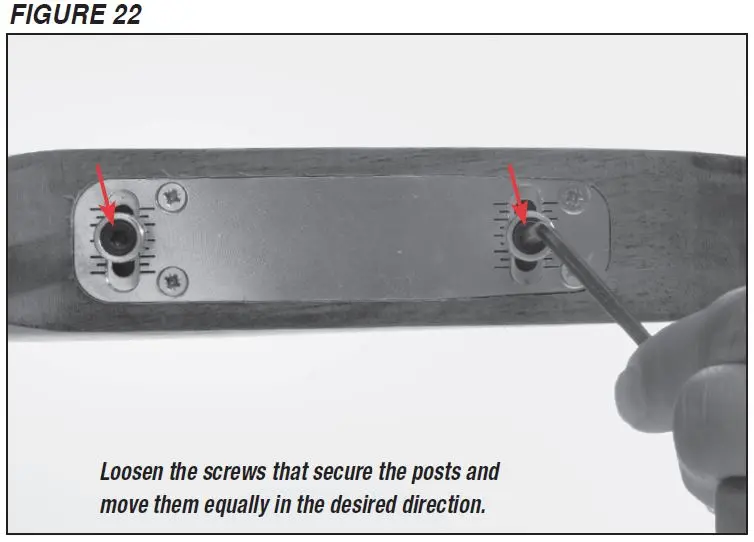

SX3 Shotgun Comb Adjustment Stud Screws Figure 22
SX3 Shotgun Comb Adjustment Stud Screws Figure 22

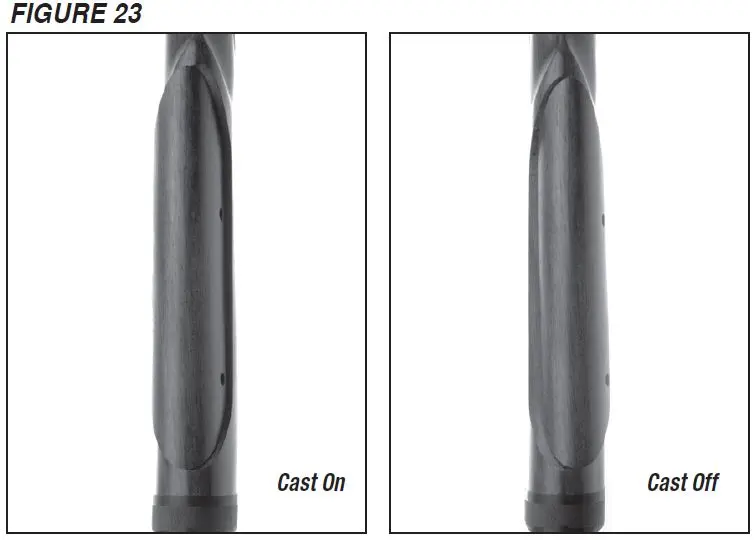

SX3 Shotgun Cast On and Off Figure 23
SX3 Shotgun Cast On and Off Figure 23

ADJUSTING DROP AT COMB

Adjusting the drop at the comb allows you to align your eye perfectly with the plane of the rib.

The drop measurement is determined by measuring the distance between the plane formed by the top of the rib and the top of the cheekpiece itself. The higher the cheekpiece, the lower the drop. To set drop, perform  the following:

1. Loosen the two stock adjustment set screws on the right side of the cheekpiece (if they were not left loose after setting the cast) using a 3mm hex (Allen) wrench. The cheekpiece will now move freely, up and down on the stock adjustment studs.

2. Position the cheekpiece on the studs at the desired drop up or down on the stock. Make sure the adjustment on each stud is equal up and down. When you have determined a possible setting, lightly tighten the stock adjustment screws and then shoulder the firearm to test the setting. Drop adjustments are a matter of trial and error. Adjust a little at a time until you obtain the desired sight picture on the rib.

3. Once your desired drop at comb is obtained, secure the cheekpiece in place by tightening the two stock adjustment set screws on the right side of the cheekpiece. Drop is now set on your shotgun.


Warning Symbol
Warning Symbol

WARNING: BEFORE PERFORMING CLEANING PROCEDURES, PLACE THE “SAFETY” IN THE ON SAFE POSITION. OPEN THE ACTION AND MAKE CERTAIN YOUR RIFLE IS COMPLETELY UNLOADED. KEEP THE MUZZLE POINTED IN A SAFE DIRECTION. FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.

WEAR EYE PROTECTION WHEN DISASSEMBLING AND CLEANING YOUR SHOTGUN TO PREVENT SPRINGS, SPRING-LOADED PARTS, SOLVENTS OR OTHER AGENTS FROM CONTACTING YOUR EYES, RESULTING IN INJURY.

KEEP ALL AMMUNITION AWAY FROM THE CLEANING AREA. NEVER TEST THE MECHANICAL FUNCTION OF YOUR SHOTGUN WITH LIVE AMMUNITION. FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.

Notice Symbol
Notice Symbol

NOTICE: PLEASE TAKE NOTE OF THE FOLLOWING INFORMATION BEFORE CLEANING YOUR FIREARM.

Cleaning and Maintenance Suggestions

Cleaning and Maintenance Suggestions

CLEANING PARTS WITH SPECIAL FINISHES

Be especially careful when cleaning firearms with camouflage, Dura-Touch® Armor Coating and other special finishes. Always prevent these surfaces from coming in contact with cleaning solvents, barrel scrubbers and other strong chemicals. It is preferable to clean these surfaces with a lightweight gun oil containing no solvents or with a damp cloth and mild dish soap (be sure to keep water out of the action). When cleaning your firearm’s bore and action, protect the external finishes from any contact with chemicals used. Also avoid any contact between external finishes and other strong chemicals like those found in DEET-containing insect repellents, sunscreens, etc. Damage to camouflage, Dura-Touch and other finishes caused by chemicals is irreversible and not repairable.

CLEANING THE BARREL

Your Super X3 shotgun will function better and more reliably over a longer period of time if it is properly maintained and kept clean. You should clean your shotgun after every day of shooting, and more often if it becomes excessively dirty. The barrel should be cleaned and the action wiped clean and oiled after every day of shooting. The gas system should require only occasional cleaning.

Normal maintenance can be accomplished with the barrel still attached to the receiver (oiling and wiping down). More careful cleaning requires removal of the barrel from the receiver (cleaning the barrel), and the removal of the gas piston, piston sleeve and piston sleeve spring components. A complete cleaning requires removal of the bolt and trigger group.

If a malfunction occurs, perform a thorough cleaning to see if it solves the problem before seeking the services of a Winchester Repeating Arms Authorized Repair Center, the Winchester Repeating Arms Service Facility in Arnold, Missouri, or a qualified gunsmith.

1. Place the “safety” in the on safe position. Open the action and inspect the chamber and magazine to make certain they do not contain any shells. Keep the muzzle pointed in a safe direction.

2. Remove the forearm and barrel as explained under the “Disassembly” section.

3. Using a shotgun cleaning rod with tip and patch large enough for a snug fit in the bore, insert the rod and a lightly oiled patch in the breech end of the barrel and run back and forth through the bore several times. Remove and wipe the choke tube, threads and barrel threads with a nylon brush and lightly oil.

4. Inspect the bore from both ends for leading and plastic residue that often remain in the bores from the shot cups in modern shells. Leading and plastic residue will appear as longitudinal streaks and are usually more predominant near the muzzle and just forward of the chamber. A normal amount of either is common and not serious.

5. If leading or plastic residue seems excessive you can remove it by brushing the bore with a brass brush. Soak the brush or spray the bore with a powder solvent first. Scrub until clean. To prevent bristles from breaking off, push the brush fully through the barrel each time before pulling it back through.

Warning Symbol
Warning Symbol

WARNING: MOST SOLVENTS ARE HIGHLY FLAMMABLE. WEAR EYE PROTECTION AND PRACTICE APPROPRIATE SAFETY MEASURES WHEN WORKING WITH SOLVENTS TO AVOID SERIOUS INJURY.

6. After all leading and plastic residues have been removed, run a clean, dry patch through the bore. Follow this with a final, lightly oiled patch.

7. Reassemble the shotgun and wipe all exposed metal surfaces with an oiled cloth making sure to wipe away all finger marks where moisture could accumulate.

8. Inspect the barrel and chamber to be certain no patches have inadvertently been left in them.  Remove any that remain.

9. Lightly oil your firearm at the points described under the “Periodic Oiling” section. Regular, light oiling is extremely important to the durability and reliable operation of your shotgun.

10. The wood surfaces can also be wiped with a quality, lightweight gun oil or they can be polished with any quality furniture wax (but not both).

CLEANING THE GAS SYSTEM

1. Remove the gas piston, piston sleeve spring, and piston sleeve from the magazine tube as explained in the “Disassembly” section.

2. Spray the magazine tube, gas piston, and piston sleeve with gun solvent and brush them thoroughly with a nylon brush to remove any deposits. It will be easier to remove the piston sleeve spring to clean the interior of the piston sleeve. Spray the inside of the gas piston with solvent. A green Scotch-Brite® kitchen scrub pad works best for removal of heavy carbon fouling on the tube and inside the gas piston. Do not remove the spring inside of the piston. Never use a steel brush on any of the gas system components.

3. Complete the cleaning of the gas system by applying a light film of oil to all parts for protection and lubrication.

PERIODIC OILING

The metal parts of a firearm should receive a light film of oil after the firearm has been exposed to weather or handling.

Occasionally, a drop of lightweight gun oil may be placed inside the receiver on the rails on which the bolt slides,  and on the surface of the magazine tube, where the gas piston slides. This will help relieve friction and ensure smooth operation.

If the firearm has been exposed to excessive dust, dirt, mud, or water, the principal working parts (including the gas system) should be wiped clean and lubricated with a light film of quality, lightweight gun oil.

Notice Symbol
Notice Symbol

NOTICE: DO NOT PLACE LARGE QUANTITIES OF OIL INTO THE ACTION. EXCESS OIL WILL RUN BACK INTO THE WOOD OF THE STOCK SOFTENING THE WOOD, WITH CONSEQUENTIAL LOOSENING OF THE STOCK.


Warning Symbol
Warning Symbol

WARNING: BEFORE PERFORMING CLEANING PROCEDURES, PLACE THE “SAFETY” IN THE ON SAFE POSITION. OPEN THE ACTION AND MAKE CERTAIN YOUR SHOTGUN IS COMPLETELY UNLOADED. KEEP THE MUZZLE POINTED IN A SAFE DIRECTION. FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.

Warning Symbol
Warning Symbol

WARNING: WEAR EYE PROTECTION WHEN DISASSEMBLING AND CLEANING YOUR SHOTGUN TO PREVENT SPRINGS, SPRING-LOADED PARTS, SOLVENTS OR OTHER AGENTS FROM CONTACTING YOUR EYES, RESULTING IN INJURY.

Warning Symbol
Warning Symbol

WARNING: KEEP ALL AMMUNITION AWAY FROM THE CLEANING AREA. NEVER  TEST THE MECHANICAL FUNCTION OF YOUR SHOTGUN WITH LIVE AMMUNITION. FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.

Servicing the Trigger Group and Bolt Assemblies

Servicing the Trigger Group and Bolt Assemblies

The trigger group and bolt can be removed if the action becomes excessively dirty or wet. If this occurs, disassemble the action for a complete cleaning as explained in the following sections. The trigger group and bolt assembly of your Super X3 shotgun are designed to be removed in the field, without special tools.

Disassembly of the action involves the removal of the bolt assembly and the trigger group. Disassembly beyond this point should only be performed by a qualified gunsmith.

REMOVING THE TRIGGER GROUP

1. Place the bolt in the forward position by holding the operating handle and depressing the carrier release button.

Notice Symbol
Notice Symbol

NOTICE: NEVER ALLOW THE ACTION TO SLAM CLOSED BY PRESSING THE CARRIER RELEASE BUTTON WITHOUT THE BARREL INSTALLED. IF THE BOLT IS RELEASED FORWARD WITH THE BARREL REMOVED, THE OPERATING HANDLE WILL HIT THE RECEIVER AND CAUSE DAMAGE.

2. Use a punch or similar object to push inward on the trigger group pins, taking care not to scratch the receiver (Figure 24). Trigger group pins may be removed from either side of the receiver. Push the trigger group pins through the receiver. Pull on them from the opposite side to remove them (Figure 25).

3. Grasp the trigger guard and pull it up and out of the receiver (Figure 26).

4. Perform any cleaning of the parts and receiver cavity as necessary. We suggest cleaning the trigger group with a quality aerosol gun solvent. Allow it to dry and then very lightly oil the moving parts.

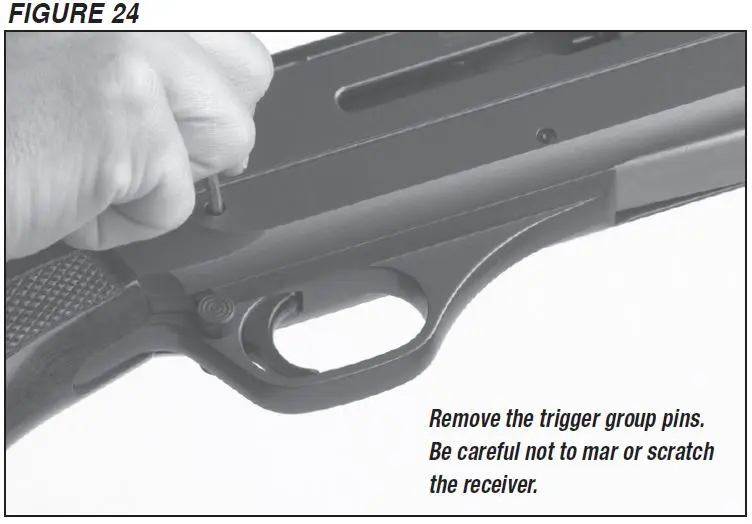

SX3 Shotgun Trigger Pin Removal Figure 24
SX3 Shotgun Trigger Pin Removal Figure 24

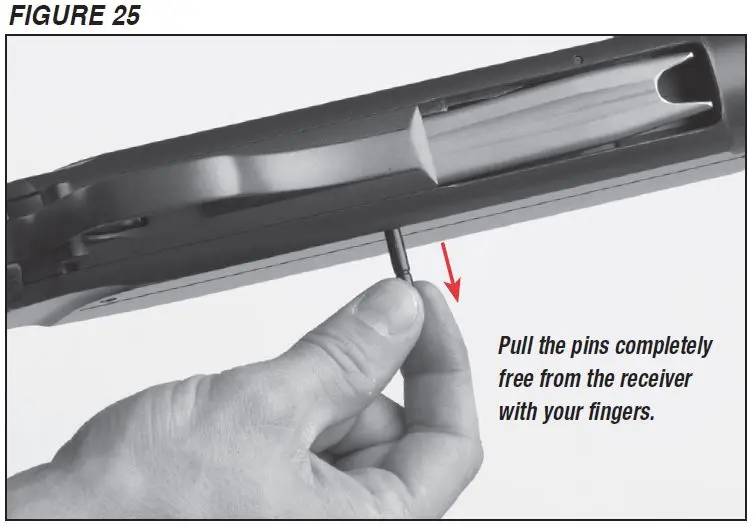

SX3 Shotgun Pulling Pins Out Completely Figure 25
SX3 Shotgun Pulling Pins Out Completely Figure 25

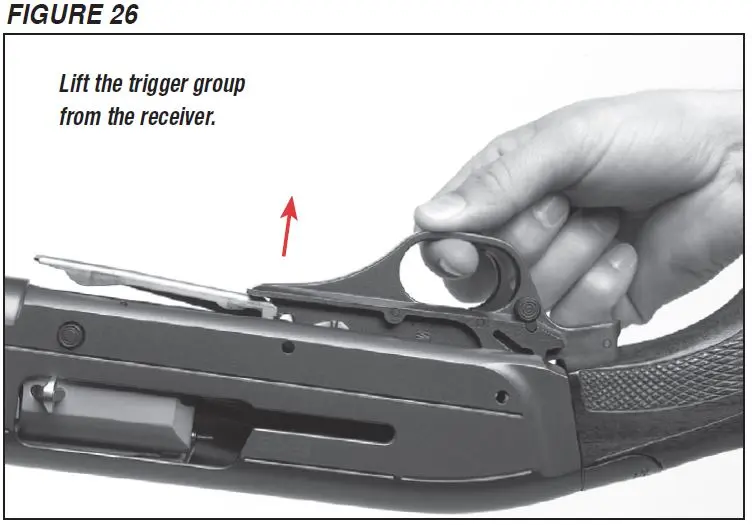

SX3 Shotgun Removing the Trigger Group Figure 26
SX3 Shotgun Removing the Trigger Group Figure 26
Notice Symbol
Notice Symbol

NOTICE: DO NOT DISASSEMBLE THE TRIGGER GROUP BEYOND THIS POINT.

REINSTALLATION OF THE TRIGGER GROUP

1. Make sure the bolt is in the forward position.

2. Insert the trigger group into the receiver. Align the holes in the trigger group with the holes on each side of the receiver.

3. Reinsert the trigger group pins and gently tap them into place with a plastic or wooden mallet, again using caution not to scratch the receiver.

REMOVING THE BOLT ASSEMBLY

1. Remove the trigger group as explained above.

2. Pull the bolt handle to the rear until the bolt locks in the open position.

3. Remove the barrel, gas piston, piston sleeve, and piston sleeve spring as explained previously.

4. Place the bolt in the forward position by holding the bolt handle and pressing the carrier release button.

Notice Symbol
Notice Symbol

NOTICE: NEVER ALLOW THE ACTION TO SLAM CLOSED BY PRESSING THE CARRIER RELEASE BUTTON WITHOUT THE BARREL INSTALLED. IF THE BOLT IS RELEASED FORWARD WITH THE BARREL REMOVED, THE OPERATING HANDLE WILL HIT THE RECEIVER AND CAUSE DAMAGE.

5. On 12 gauge models, remove the operating handle by pulling it outward (Figure 27).

On 20 gauge models, remove the operating handle by holding the shotgun with the loading port up. Press the shell stop while pulling outward on the operating handle (Figure 28).

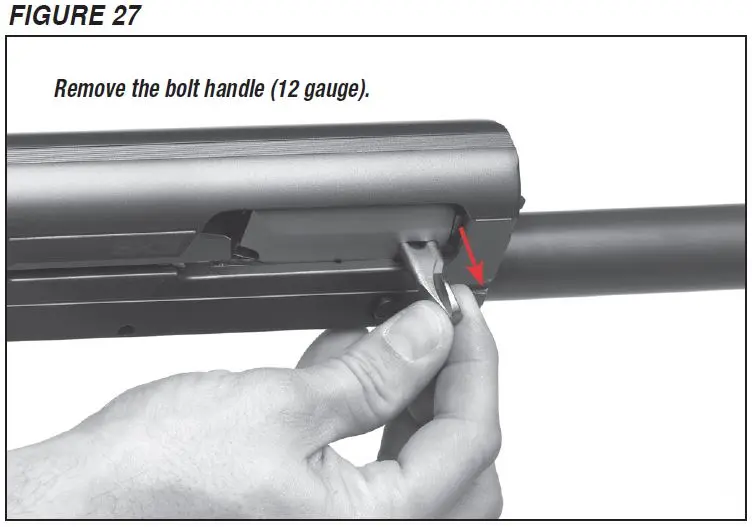

SX3 Shotgun Bolt Handle Removal Figure 27
SX3 Shotgun Bolt Handle Removal Figure 27

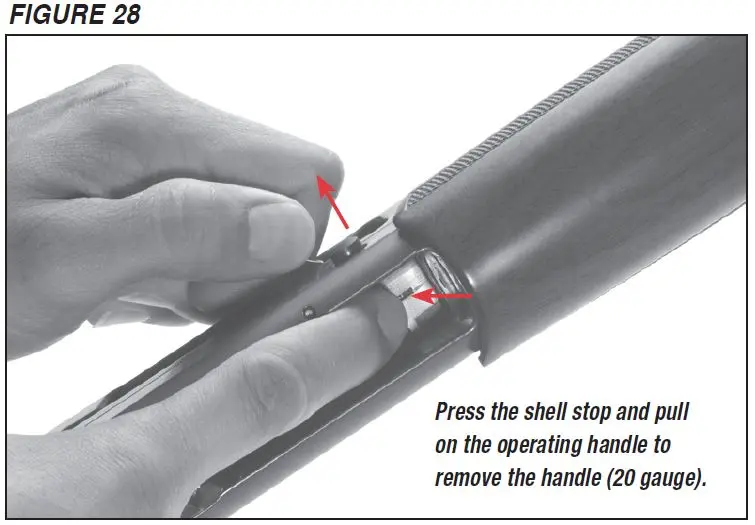

SX3 Shotgun 20 Gauge Bolt Handle Removal Figure 28
SX3 Shotgun 20 Gauge Bolt Handle Removal Figure 28

6. On 12 gauge models, slide the bolt assembly forward and out of the receiver (Figure 29).

On 20 gauge models, press the shell stop and slide the bolt and bolt slide forward and out of the receiver.

7. The bolt and bolt slide can be separated for cleaning (Figure 30). Perform any cleaning of the bolt and receiver cavity as necessary.

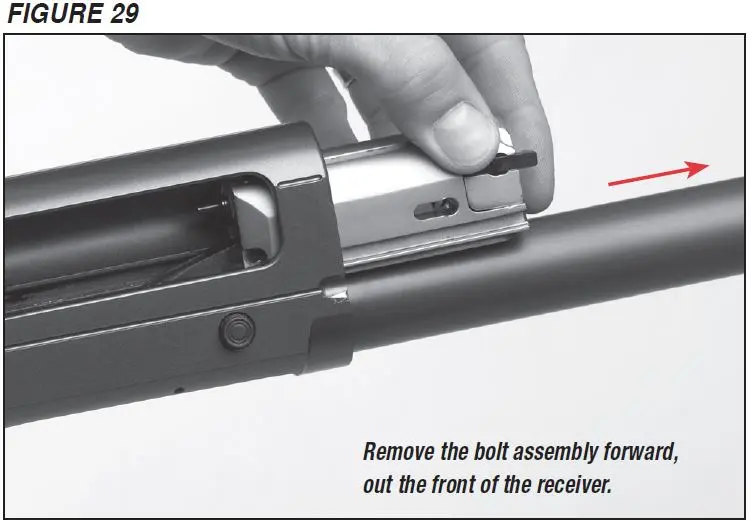

SX3 Shotgun Bolt Assembly Removal Figure 29
SX3 Shotgun Bolt Assembly Removal Figure 29

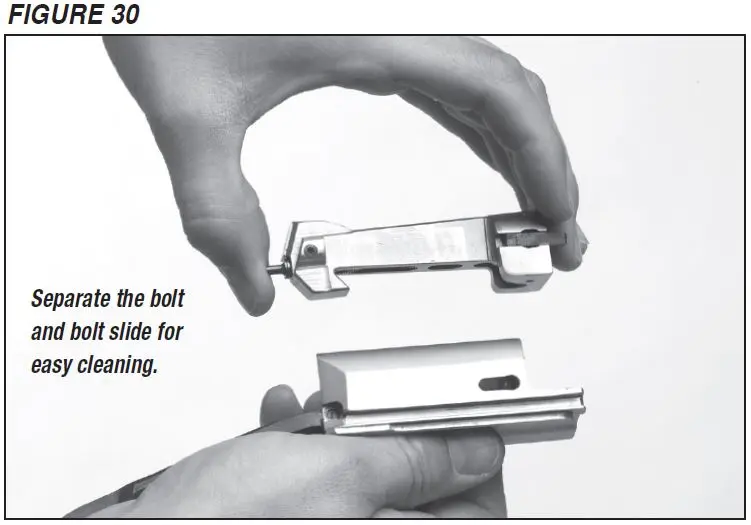

SX3 Shotgun Bolt Disassembly Figure 30
SX3 Shotgun Bolt Disassembly Figure 30
Notice Symbol
Notice Symbol

NOTICE: DO NOT DISASSEMBLE THE BOLT ASSEMBLY BEYOND THIS POINT.

REINSTALLING THE BOLT ASSEMBLY

1. Reassemble the bolt and bolt slide (Figure 31).

2. Place a few drops of oil in the grooves to lubricate the bolt slide rails (Figure 3). Align the rails on the bolt slide with the grooves in the sides of the receiver and place the bolt assembly back in the receiver, bolt slide link end first (Figure 32).

3. Guide the bolt slide link into its socket in the recoil spring follower (Figure 33).

4. On 12 gauge models, replace the operating handle by inserting it in its slot in the bolt.

On 20 gauge models, replace the operating handle by inserting it in its slot in the bolt by holding the shotgun with the loading port up and pressing the shell stop while inserting the operating handle into the slot.

IMPORTANT: On 20 gauge models, it may be necessary to pull out on the operating handle slightly until the shell stop clicks back in place. Failure to follow these instructions will result in the inability to load the magazine.

5. Open and close the action several times to make sure the bolt slide link and recoil spring follower are properly engaged.

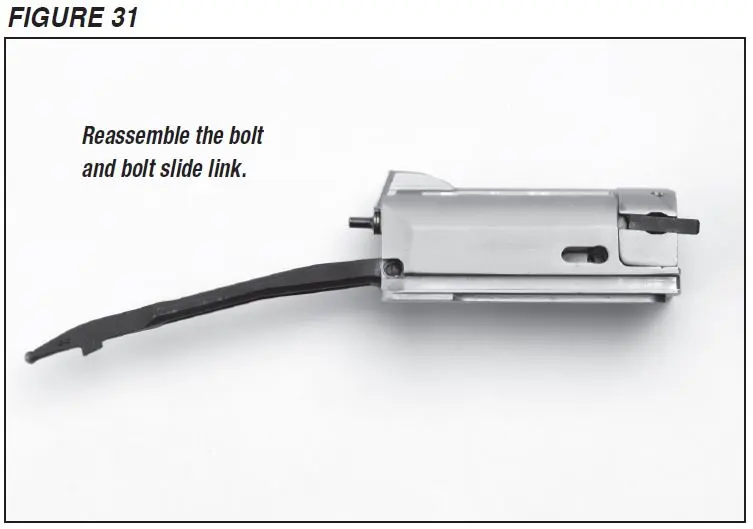

SX3 Shotgun Reassembling the Bolt Figure 31
SX3 Shotgun Reassembling the Bolt Figure 31

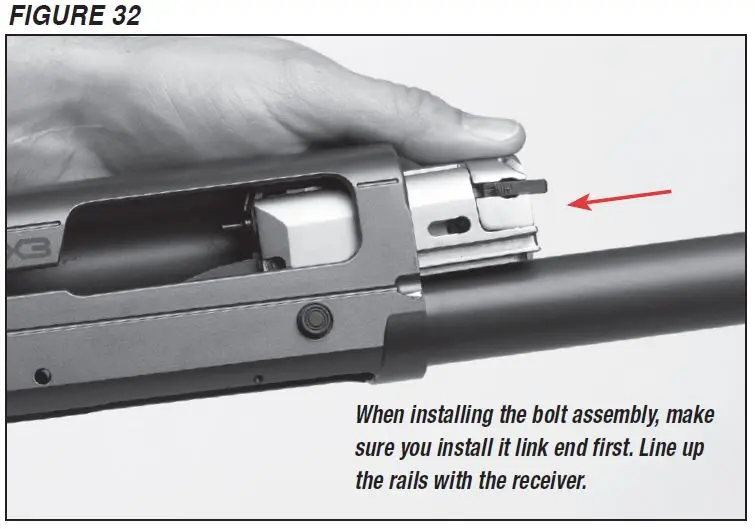

SX3 Shotgun Bolt Assembly Installation Figure 32
SX3 Shotgun Bolt Assembly Installation Figure 32

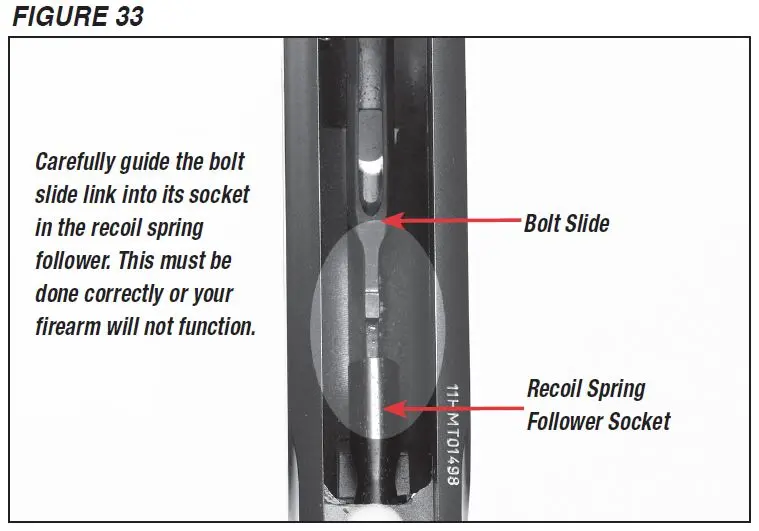

SX3 Shotgun Bolt Slide Link Diagram Figure 33
SX3 Shotgun Bolt Slide Link Diagram Figure 33
Notice Symbol
Notice Symbol

NOTICE: NEVER ALLOW THE ACTION TO SLAM CLOSED BY PRESSING THE CARRIER RELEASE BUTTON WITHOUT HAVING THE BARREL INSTALLED. DAMAGE WILL RESULT TO THE RECEIVER AND BOLT HANDLE.

CLEANING THE ACTION

1. When the action becomes excessively dirty, remove the trigger group and bolt assembly from the receiver as explained under “Servicing the Trigger Group and Bolt Assemblies” section above. Clean with a gun solvent as necessary, using a nylon brush to loosen any caked-on grime.

Wipe the receiver cavity clean. Lightly oil the cavity and wipe it dry. No further disassembly is required for cleaning.

2. Reassemble the trigger group, bolt assembly, gas system, and the barrel to the receiver as explained previously. Then wipe all exposed metal surfaces with an oiled cloth, making sure to wipe clean all finger marks where moisture could accumulate.

3. The barrel and action should be inspected thoroughly to be certain no cleaning patches have been inadvertently left in them.

CLEANING THE INVECTOR - PLUS CHOKE SYSTEM

1. Never use a brass brush to clean your barrels unless choke tubes are installed. Bristles could break off and lodge in the threads, making installation and removal of the choke tubes difficult.

2. Regularly remove the choke tubes to clean and oil the threads inside the barrel, as well as on the choke tube itself. This will protect the threads from being damaged and also prevent build-up that would cause the choke tube to become difficult to remove. Clean the threads with solvent and a small, soft brush like a toothbrush. Wipe completely clean and leave a thin film of clean oil on the threads, both on the tube and in the barrel. The threads of the choke tube and the internal threads of the barrel should be cleaned after each use and before the installation of a tube.

3. Be careful when removing/installing a choke tube. Use only the specially designed wrench. Damage can result to both the choke tube and barrel when attempting to remove or install choke tubes.

4. Never fire your shotgun or run cleaning tools through the barrel of any choke-tubed shotgun without having the choke tubes installed.

Notice Symbol
Notice Symbol

NOTICE: DO NOT TAKE YOUR FIREARM’S ACTION APART BEYOND WHAT IS EXPLAINED IN THIS OWNER’S MANUAL. THIS IS A SPECIALIZED, FINELY FITTED MECHANISM; ANY ATTEMPT TO DISASSEMBLE THE INNER MECHANISM MAY MAR IT BEYOND REPAIR. IT IS UNNECESSARY, AND MAY DO DAMAGE TO THE INNER MECHANISM TO DISASSEMBLE IT FOR ROUTINE CLEANING AND OILING. OF COURSE, MISFORTUNES (SUCH AS DROPPING YOUR FIREARM IN WATER) REQUIRE APPROPRIATE ATTENTION, AND IN SUCH CIRCUMSTANCES WE RECOMMEND YOU IMMEDIATELY TAKE YOUR FIREARM TO A QUALIFIED GUNSMITH.

OTHER SUGGESTIONS

After extended periods of heavy use, your firearm should be taken to a qualified gunsmith to have the action disassembled for professional cleaning and lubrication.


PARTS, SERVICE, REPAIR, AND QUESTIONS

PARTS, SERVICE, REPAIR, AND QUESTIONS

If your Winchester firearm should require service or repair, we suggest first contacting a Winchester Repeating Arms Authorized Repair Center. To locate an Authorized Repair Center visit winchesterguns.com, contact our customer service department, or ask your local Winchester Repeating Arms dealer. You may also send your firearm to the Winchester Repeating Arms Service Facility in Arnold, Missouri. In order to avoid service delays, do not send your firearm directly to our service facility without authorization from one of our service specialists.

Parts listings, a list of Authorized Repair Centers, service procedures, service/repair form, and general product information are on the web at winchesterguns.com.

When returning your firearm for service, you must do the following:

1. Be sure it is completely unloaded.

2. Remove any optics, optic mounts or other accessories.

3. Package it securely in a cardboard container.

4. Enclose the service/repair form available at winchesterguns.com or a letter that clearly describes the trouble experienced, the ammunition used, and the repairs desired. Also include your name, e-mail address (if possible), and a daytime phone number where you can be reached.

5. If convenient, send a copy of the Service/Repair Form or letter to us separately.

6. Never return ammunition with your firearm. It is against postal and most commerce regulations.

PARTS, SERVICE, REPAIR STATUS, AND TECHNICAL QUESTIONS:

Winchester Repeating Arms Parts and Service
3005 Arnold Tenbrook Road
Arnold, MO 63010-9406
Phone: (800) 322-4626

GENERAL PRODUCT AND HISTORICAL QUESTIONS:

Winchester Repeating Arms Customer Service
275 Winchester Avenue
Morgan, UT 84050-9333
Phone: (800) 945-5237

customersupport@winchesterguns.com

Warning Symbol
Warning Symbol

WARNING: PARTS ARE MADE FOR WINCHESTER BRAND FIREARMS MANUFACTURED BY OR FOR WINCHESTER REPEATING ARMS, AND SHOULD NOT BE USED IN OTHER FIREARMS, EVEN THOUGH MODELS MAY BE SIMILAR. IMPROPERLY FITTED PARTS MAY BE DANGEROUS. FAILURE TO FOLLOW THIS WARNING MAY CAUSE INJURY OR DEATH AND CAUSE DAMAGE TO YOUR SHOTGUN.


WEBSITE INFORMATION

WEBSITE INFORMATION

An information resource for Winchester Repeating Arms can be found online at winchesterguns.com.

  • List of Authorized Repair Centers.
  • Customer Service information.
  • Firearm Service/Repair Form.
  • Answers to many technical and historical questions.
  • Links to helpful sites.

18-WRA-115
