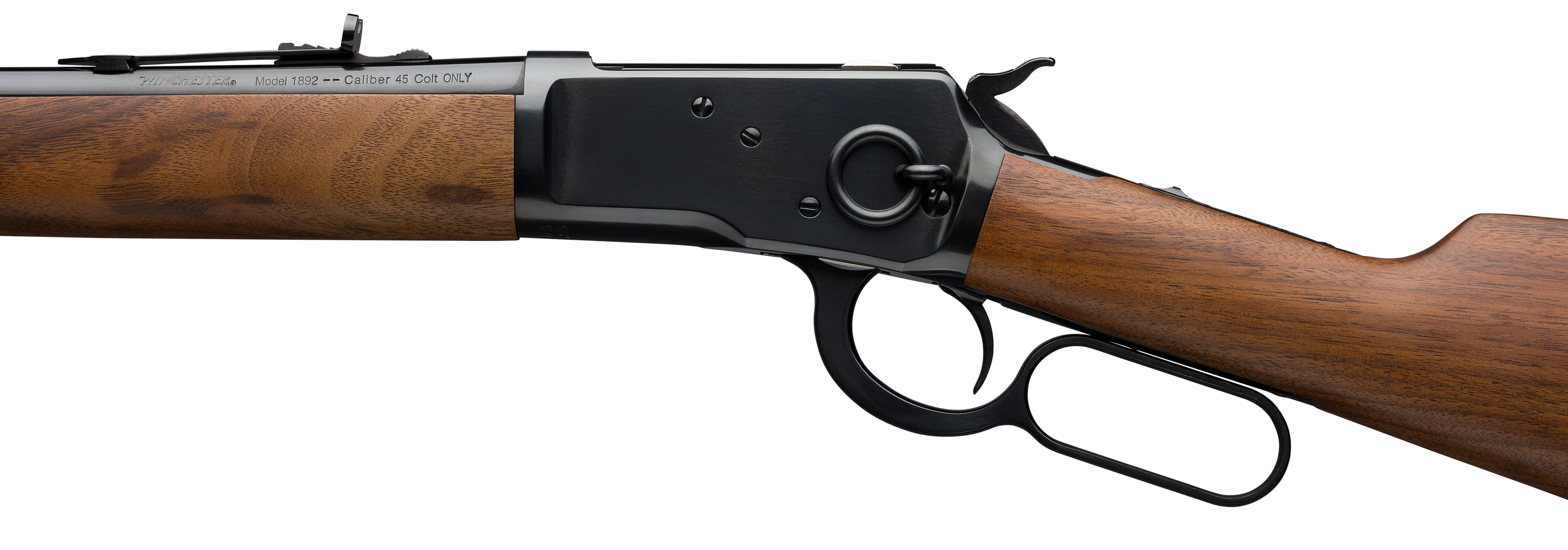

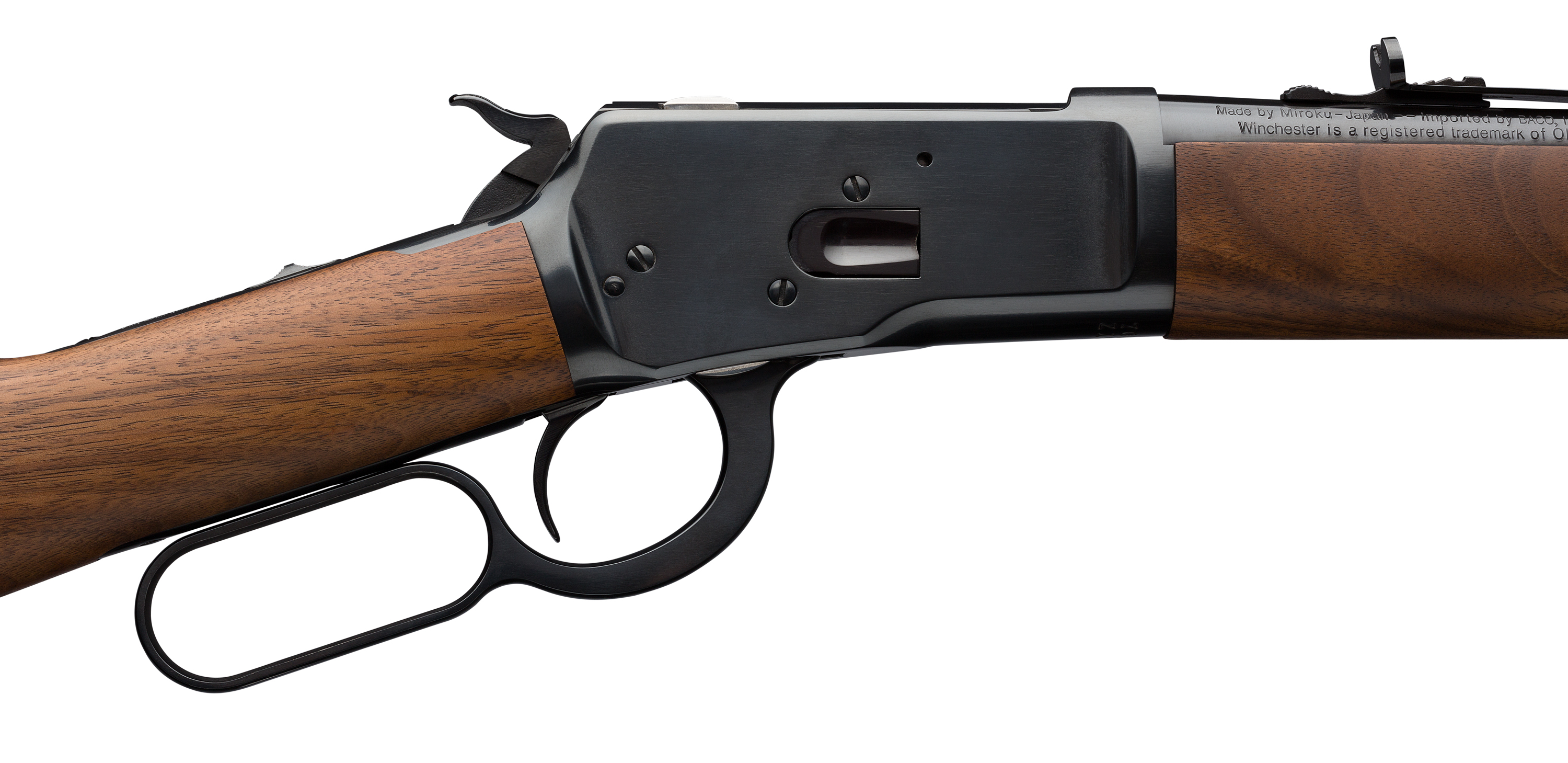

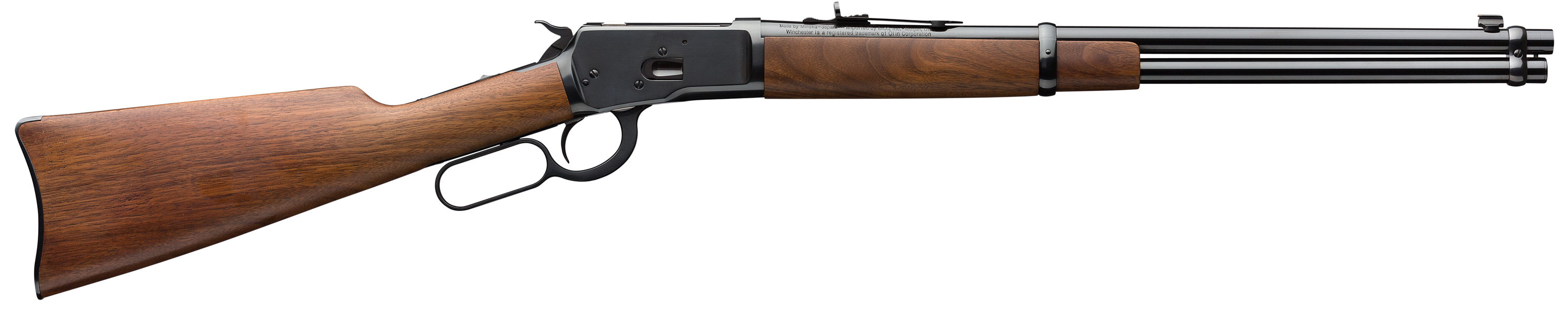

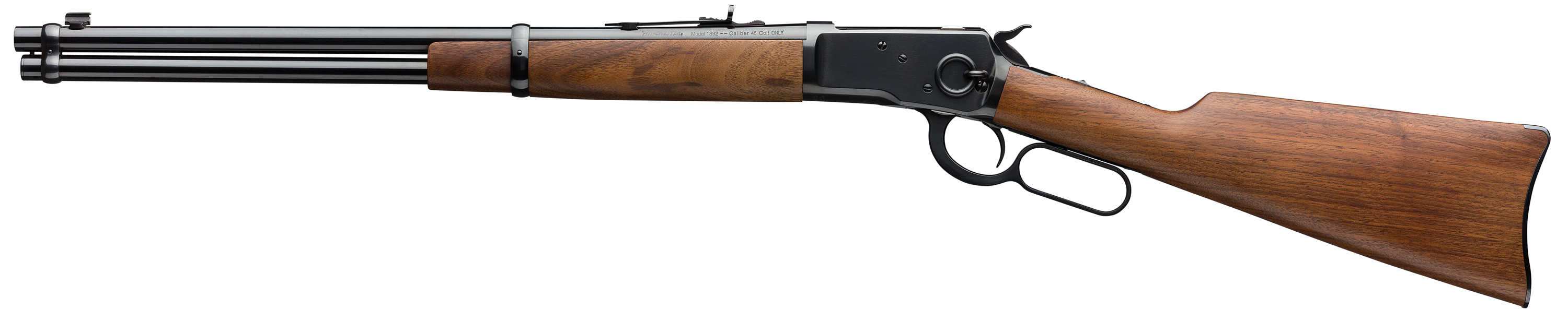

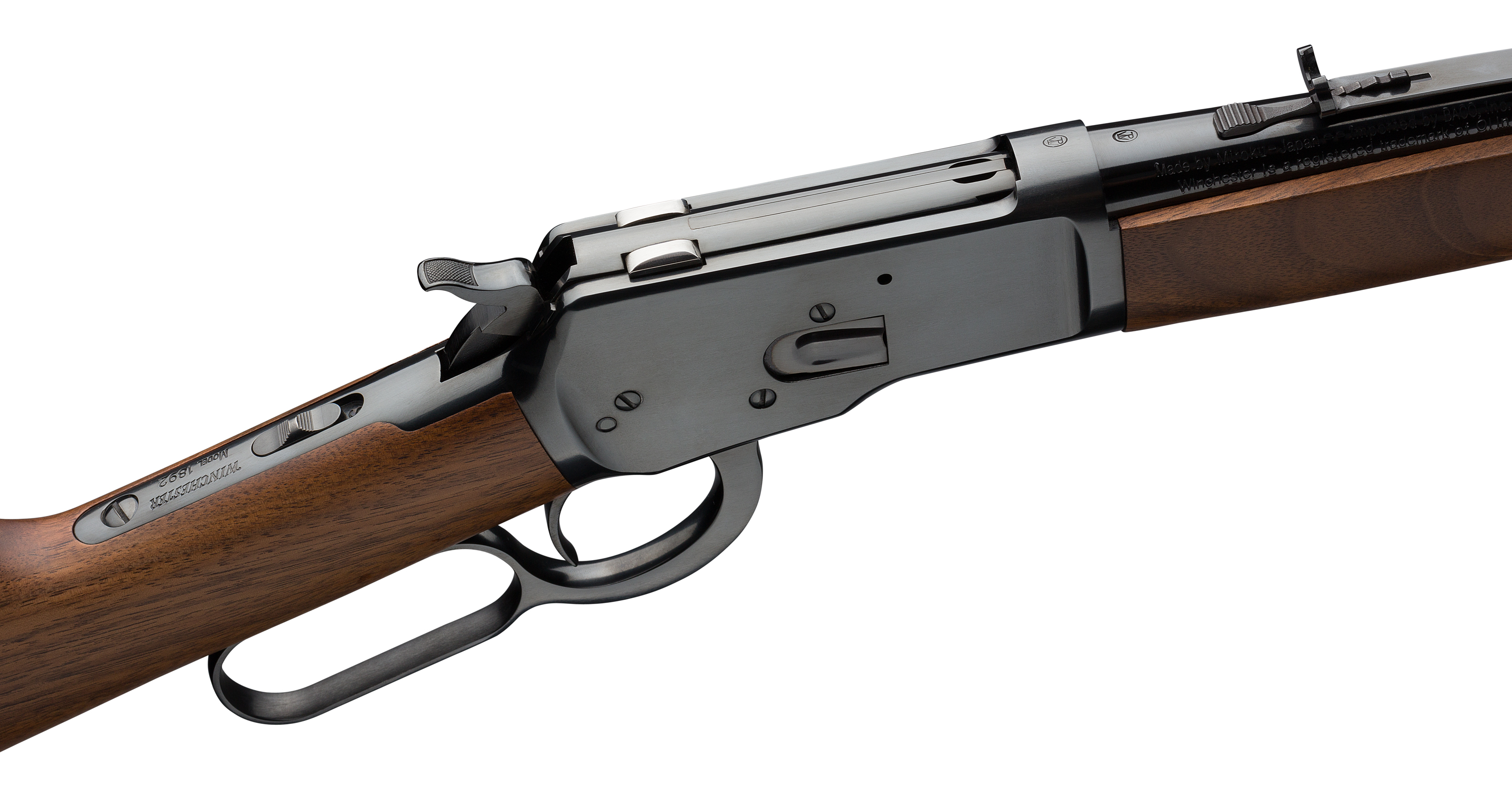

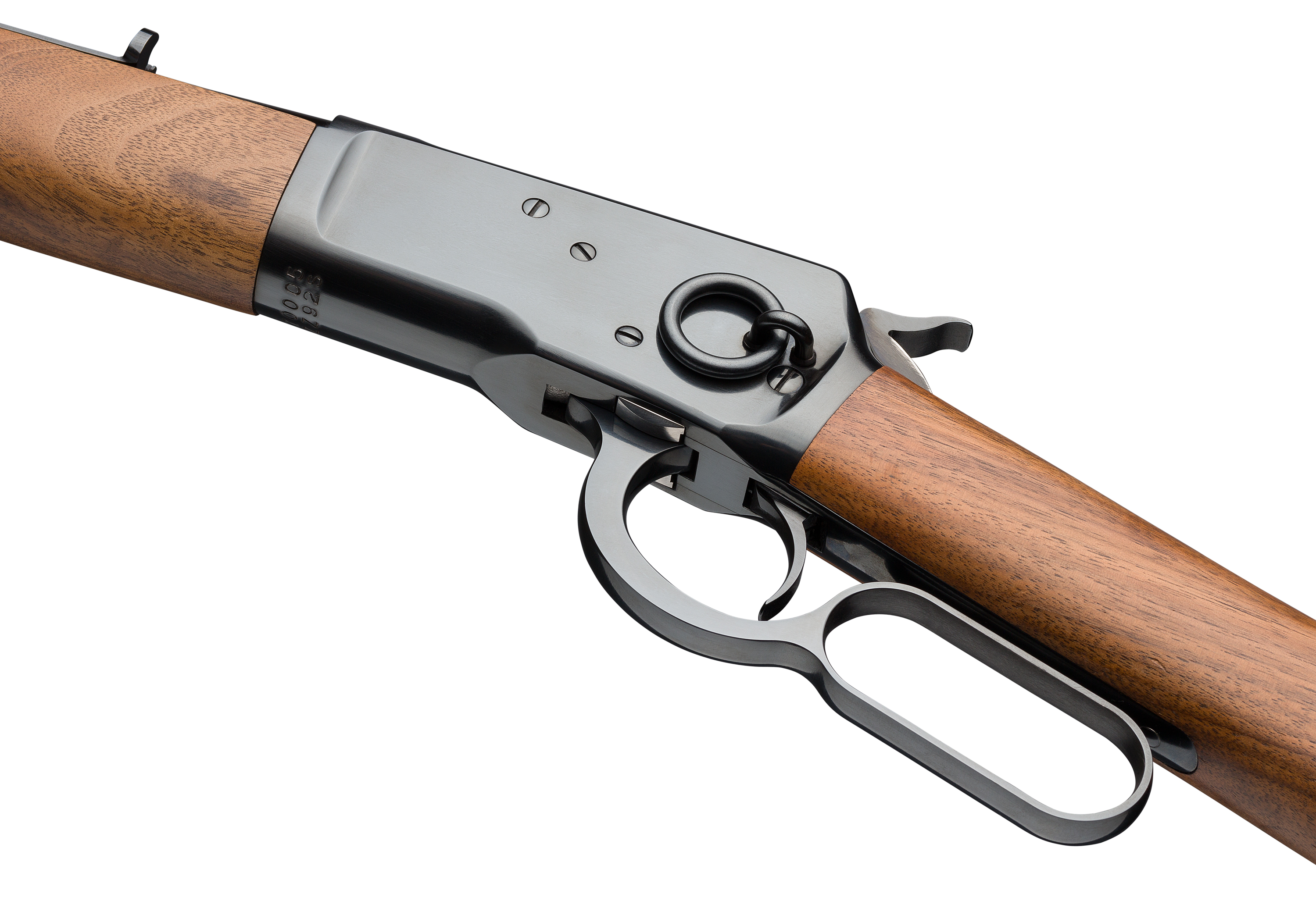

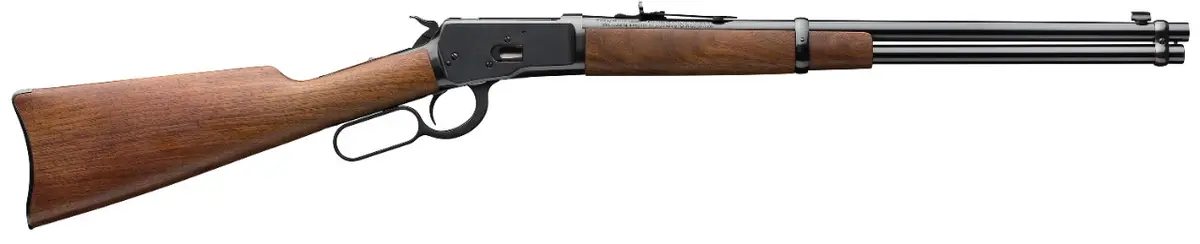

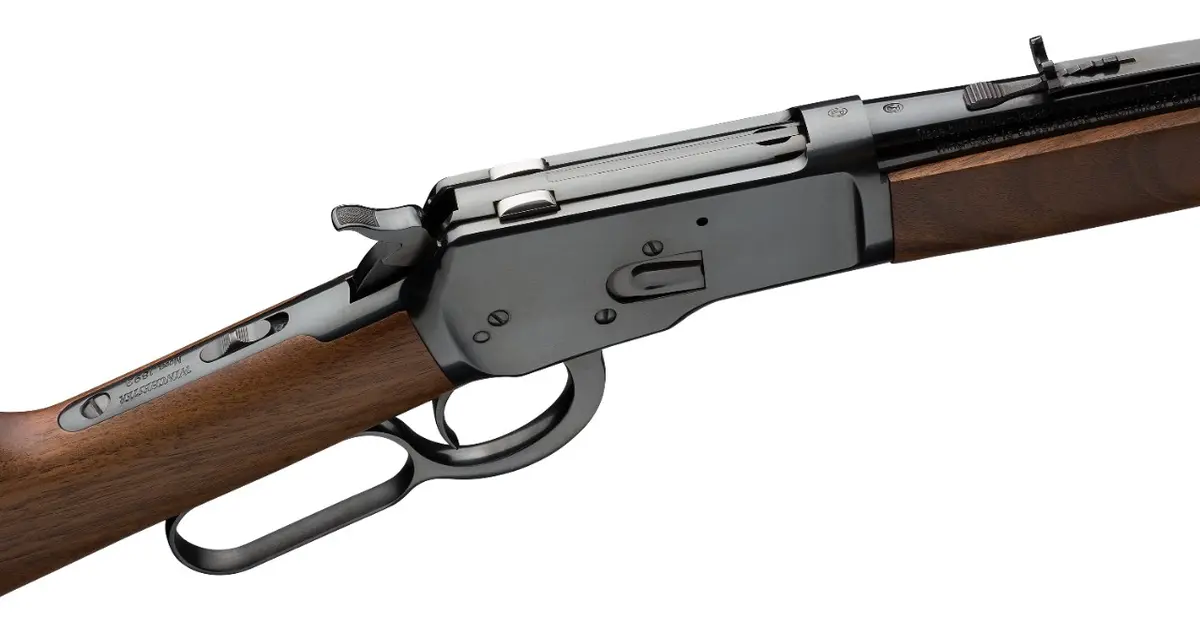

Model 1892 Carbine
Model 1892 Carbine
Classic carbine configuration of the Model 1892 lever-action with barrel band, strap buttplate, saddle ring and straight grip walnut stock. Top tang is drilled and tapped for optional peep sight.
Overview
Overview
This is the iconic lever-action of all time and is considered by many as the smoothest, most compact, handiest and most beautiful lever action ever offered by Winchester. The Model 1892 (or "The 92" as most of us call it) was the follow-up to the amazing Model 1886. The Model 1886 was designed for large hunting/military calibers of the 1800s, like 45-70 Govt. Soon after it's development, the call went out for a new (but more compact) lever rifle suitable for pistol calibers. Soon John Moses Browning produced the Model 1892 prototype for Winchester and the rest is history.
This Model 92 Carbine is in a classic round barrel configuration in classic and modern calibers, suitable for pursuits ranging from Cowboy Action to hunting small, medium, and even big game in heavy brush. Attention to detail is something you will notice like the carbine strap buttplate and barrel band just like the originals, and a Marbles gold bead front sight that adds a dose of traditional class. This rifle features a convenient rear tang safety -- but don't despair, companies (like Marble Arms) offers one made to fit should you desire to add a tang sight later.
Model 1892 Carbine Features
Model 1892 Carbine Features
- Walnut straight grip stock with a satin finish that’s velvet smooth to the touch
- Classic carbine-style forearm with blued steel barrel band for the timeless look and feel of the original Model 1892™ carbine
- Blued steel carbine strap buttplate slips into your shoulder for a solid hold
- Semi-Buckhorn rear sight with marble arms® gold bead front sight gets you on target quickly
- Steel loading gate for smoother loading
- Top tang is drilled and tapped for optional sight
Item Number 534177137 | UPC 048702119637 |
Caliber 357 Mag | Barrel Length 20" |
Overall Length 37 1/2" | Length of Pull 12 3/4" |
Drop at Comb 1 1/8" | Drop at Heel 1 3/4" |
Weight 6 lbs 0 oz | Magazine Capacity 10 |
Twist Rate 18 3/4" | Barrel Finish Brushed Polish |
Stock Finish Satin | Wood Grade Grade I |
Chamber Finish Polished | Barrel Material Steel |
Stock Material Black Walnut | Sling Swivel Studs None |
Magazine Type Full-Length Tube | Trigger Guard Engraving None |
Drilled and Tapped for Scope No | MSRP $1,169.99 |
Item Number 534177124 | UPC 048702119613 |
Caliber 44 Rem Mag | Barrel Length 20" |
Overall Length 37 1/2" | Length of Pull 12 3/4" |
Drop at Comb 1 1/8" | Drop at Heel 1 3/4" |
Weight 6 lbs 0 oz | Magazine Capacity 10 |
Twist Rate 26" | Barrel Finish Brushed Polish |
Stock Finish Satin | Wood Grade Grade I |
Chamber Finish Polished | Barrel Material Steel |
Stock Material Black Walnut | Sling Swivel Studs None |
Magazine Type Full-Length Tube | Trigger Guard Engraving None |
Drilled and Tapped for Scope No | MSRP $1,169.99 |
Item Number 534177140 | UPC 048702119644 |
Caliber 44-40 Win | Barrel Length 20" |
Overall Length 37 1/2" | Length of Pull 12 3/4" |
Drop at Comb 1 1/8" | Drop at Heel 1 3/4" |
Weight 6 lbs 0 oz | Magazine Capacity 10 |
Twist Rate 36" | Barrel Finish Brushed Polish |
Stock Finish Satin | Wood Grade Grade I |
Chamber Finish Polished | Barrel Material Steel |
Stock Material Black Walnut | Sling Swivel Studs None |
Magazine Type Full-Length Tube | Trigger Guard Engraving None |
Drilled and Tapped for Scope No | MSRP $1,169.99 |
Item Number 534177141 | UPC 048702119620 |
Caliber 45 Colt | Barrel Length 20" |
Overall Length 37 1/2" | Length of Pull 12 3/4" |
Drop at Comb 1 1/8" | Drop at Heel 1 3/4" |
Weight 6 lbs 0 oz | Magazine Capacity 10 |
Twist Rate 26" | Barrel Finish Brushed Polish |
Stock Finish Satin | Wood Grade Grade I |
Chamber Finish Polished | Barrel Material Steel |
Stock Material Black Walnut | Sling Swivel Studs None |
Magazine Type Full-Length Tube | Trigger Guard Engraving None |
Drilled and Tapped for Scope No | MSRP $1,169.99 |
